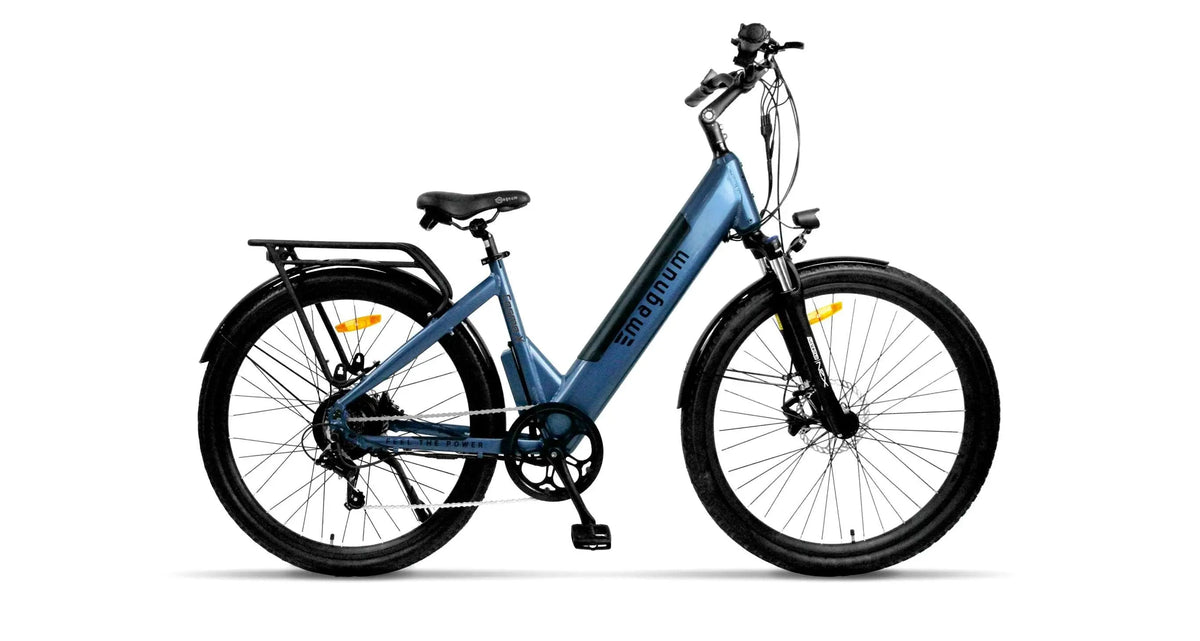

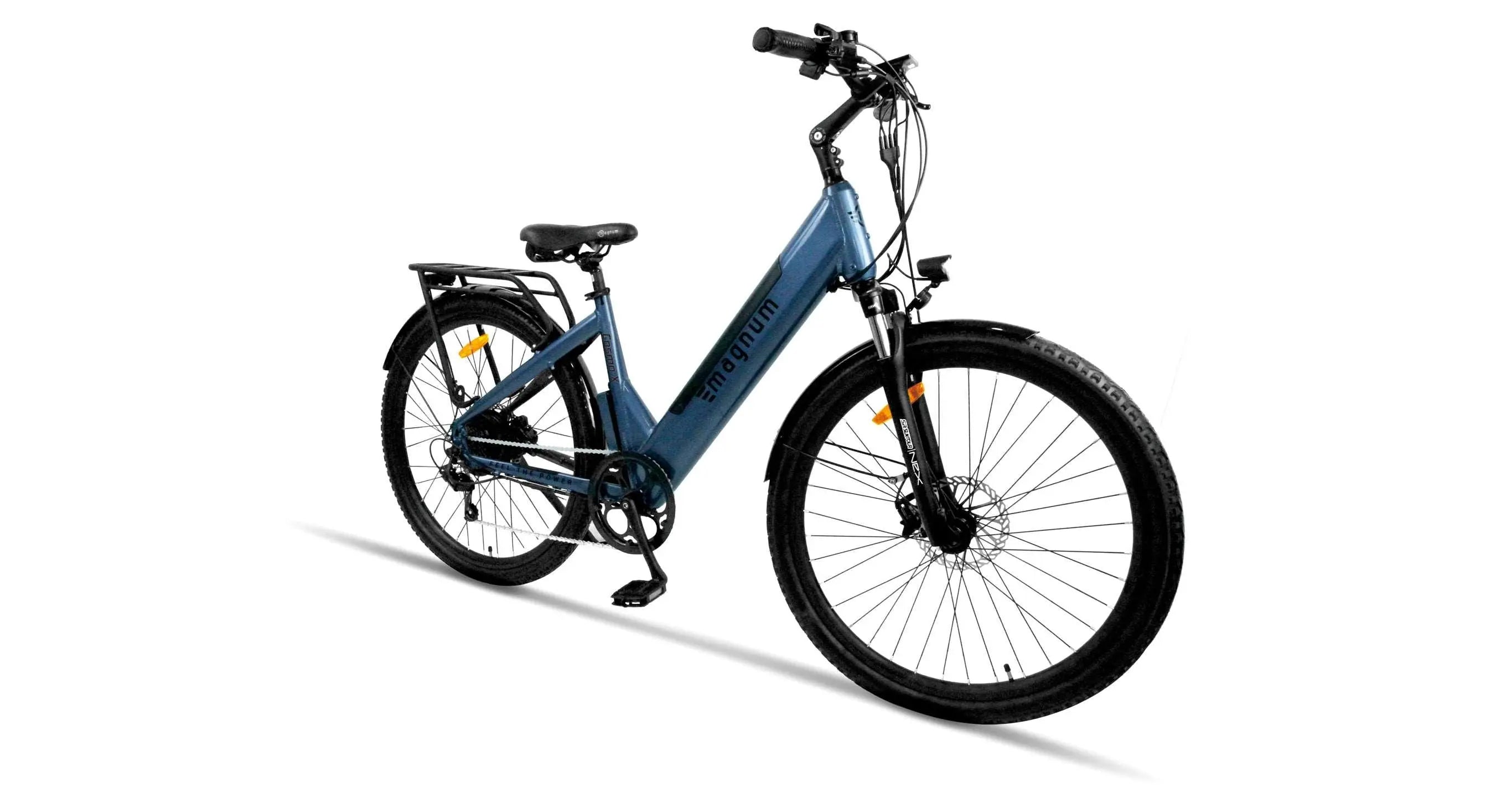

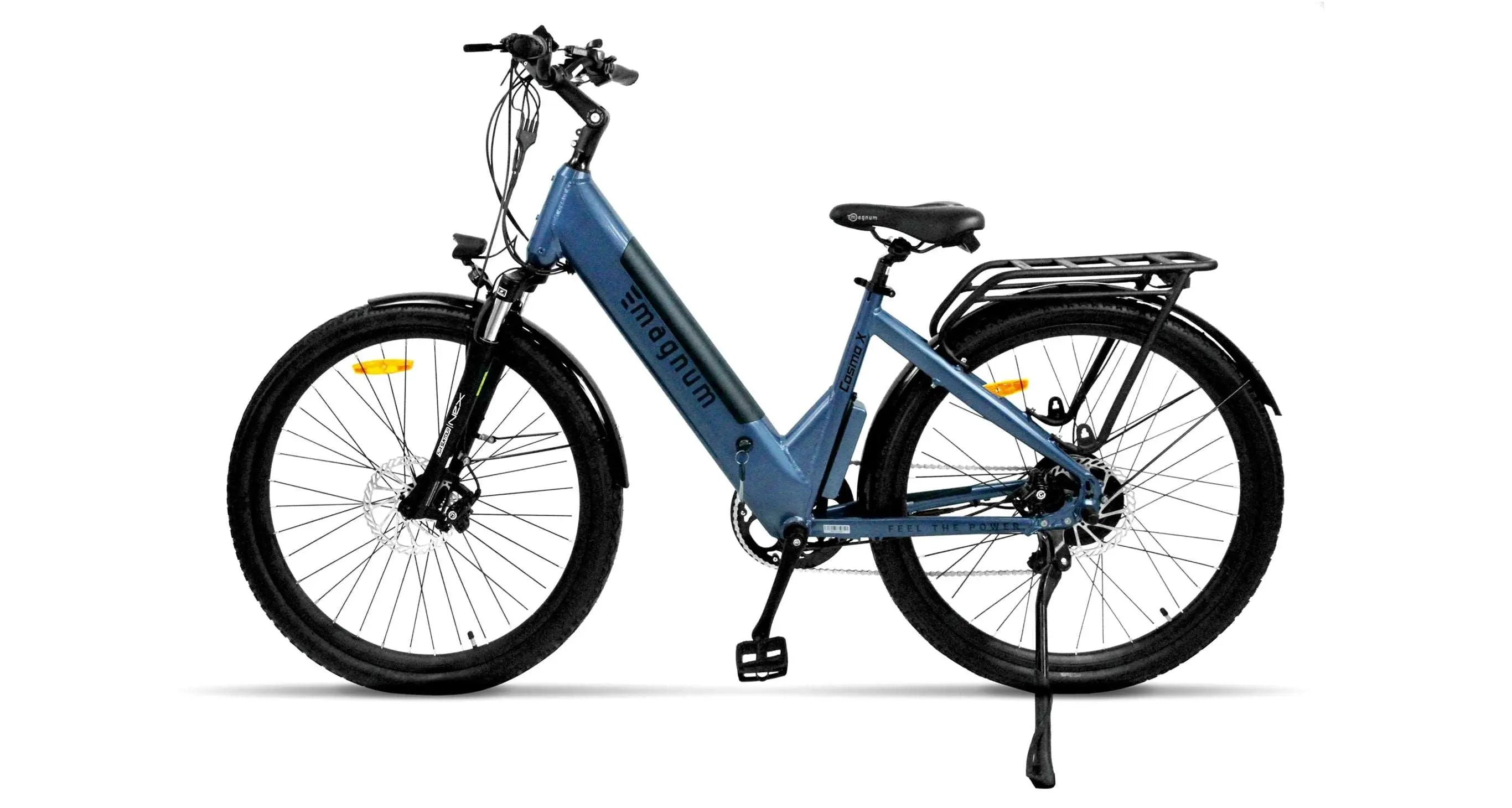

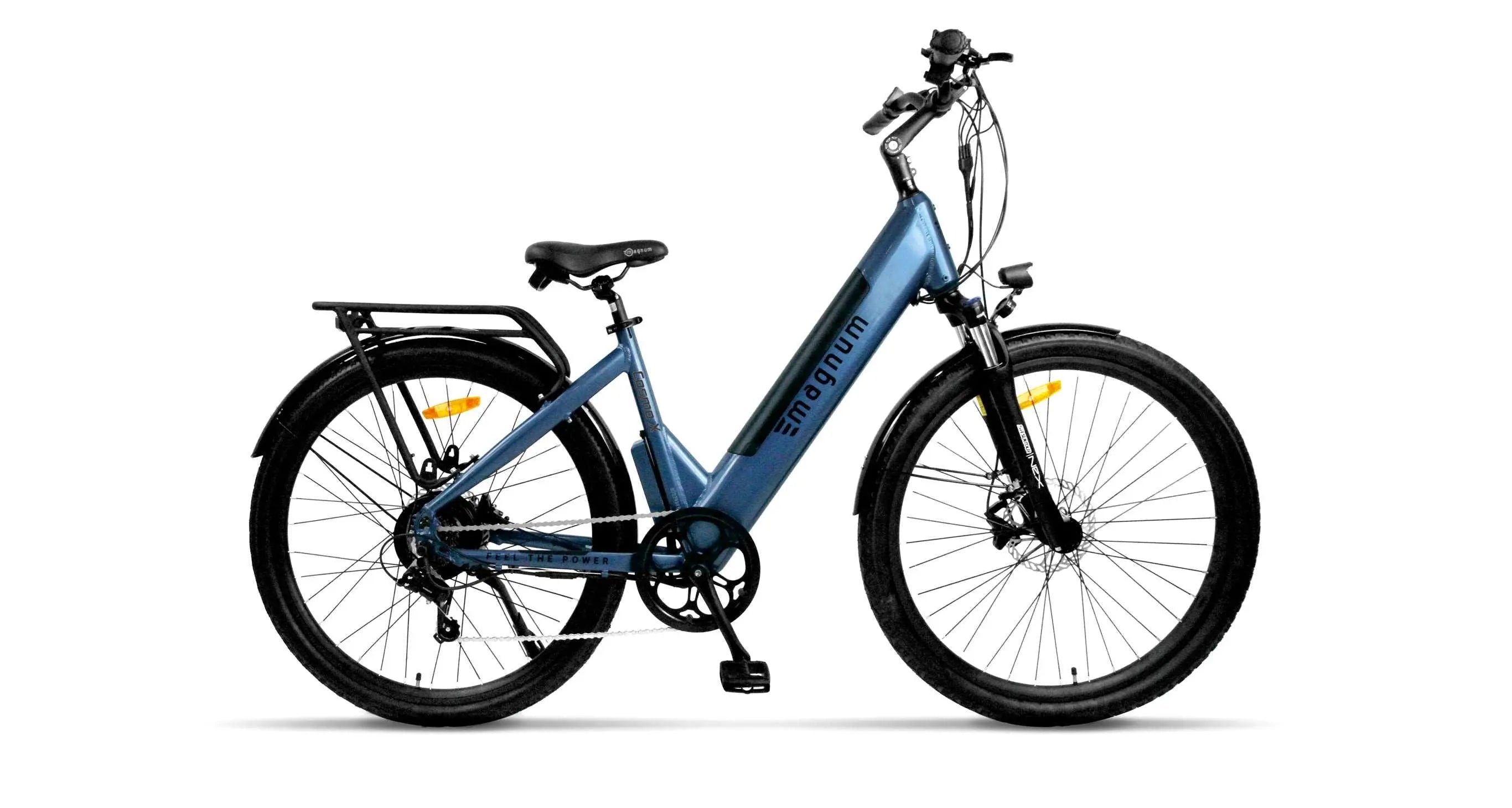

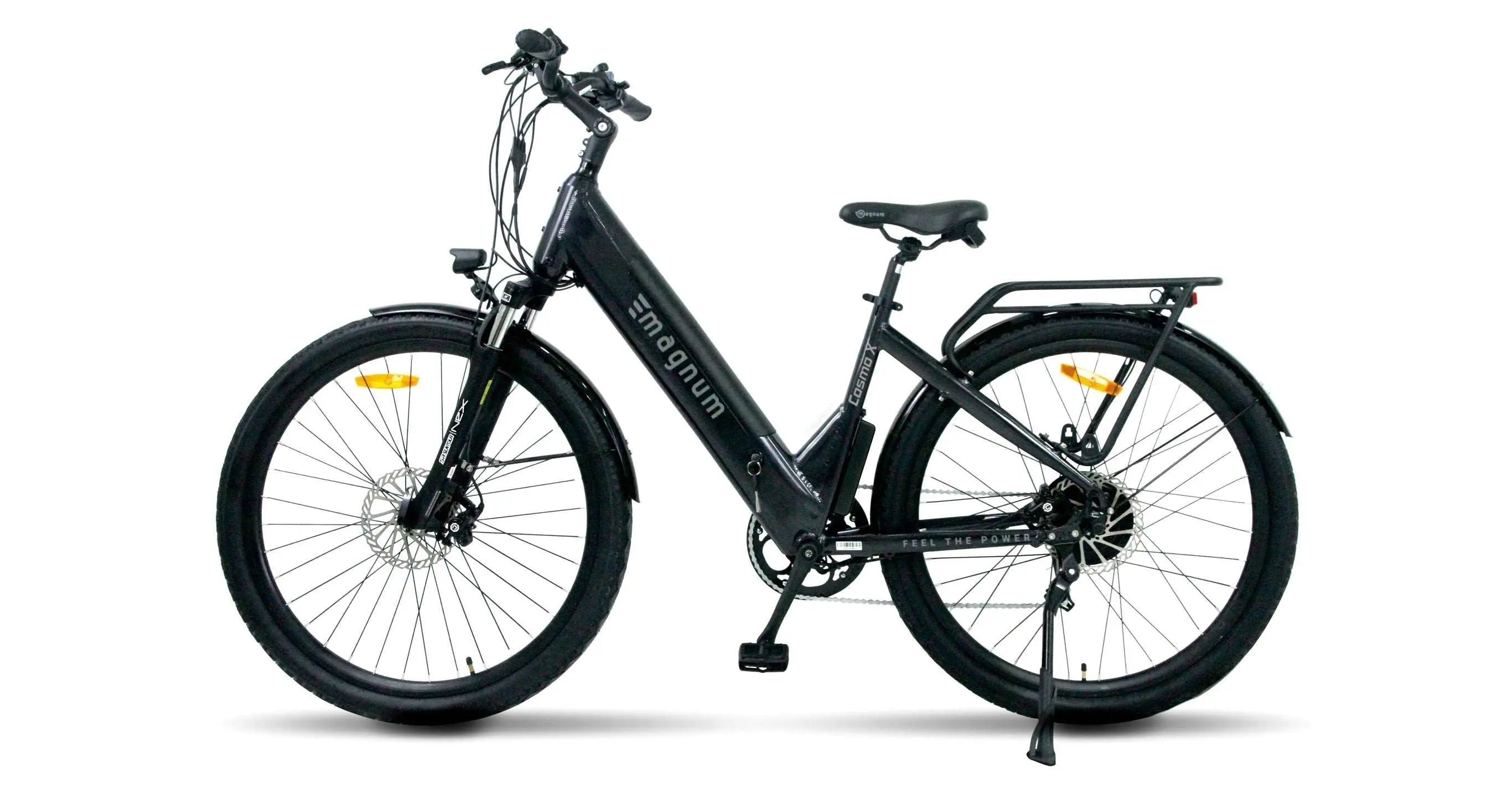

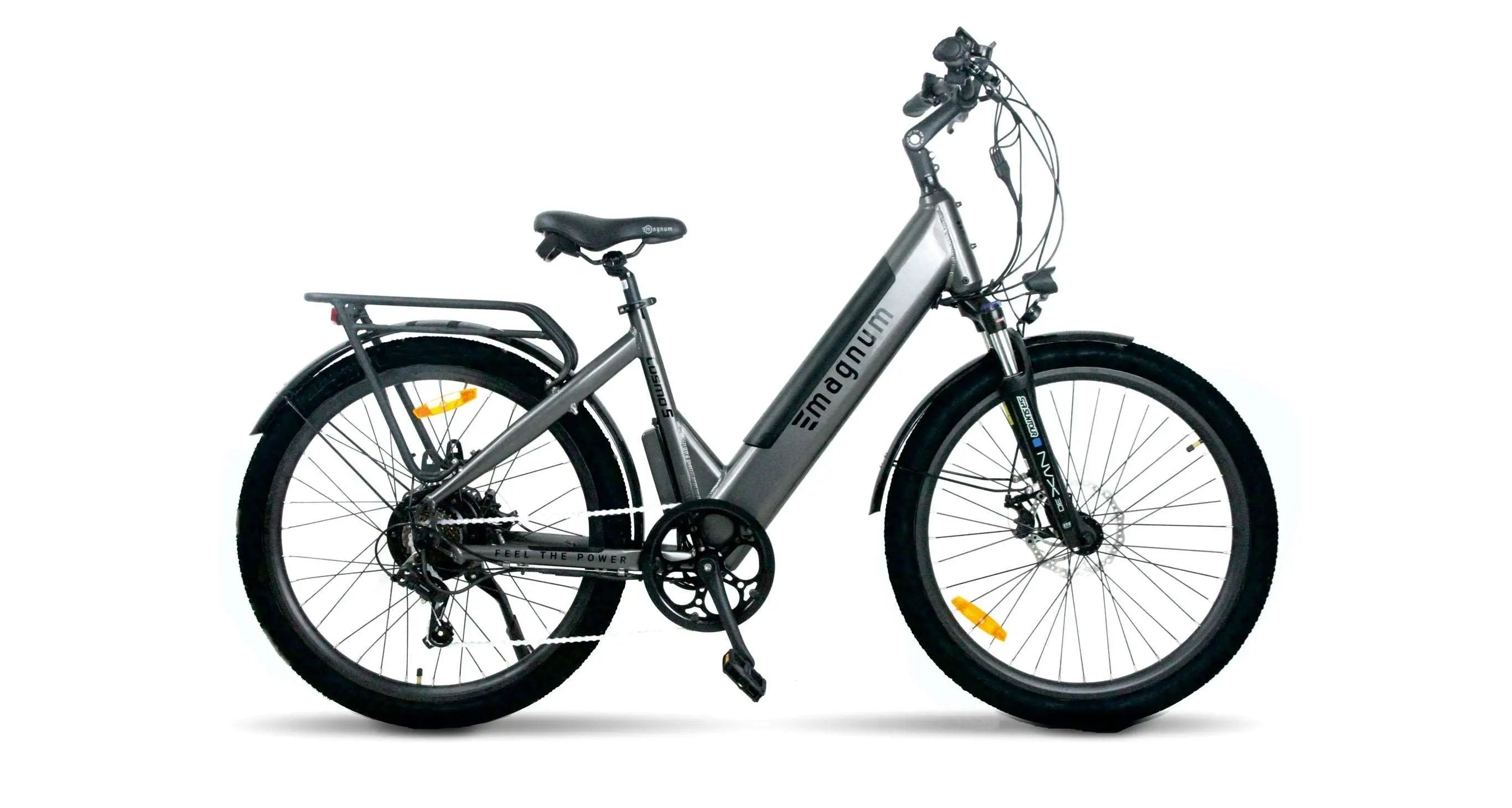

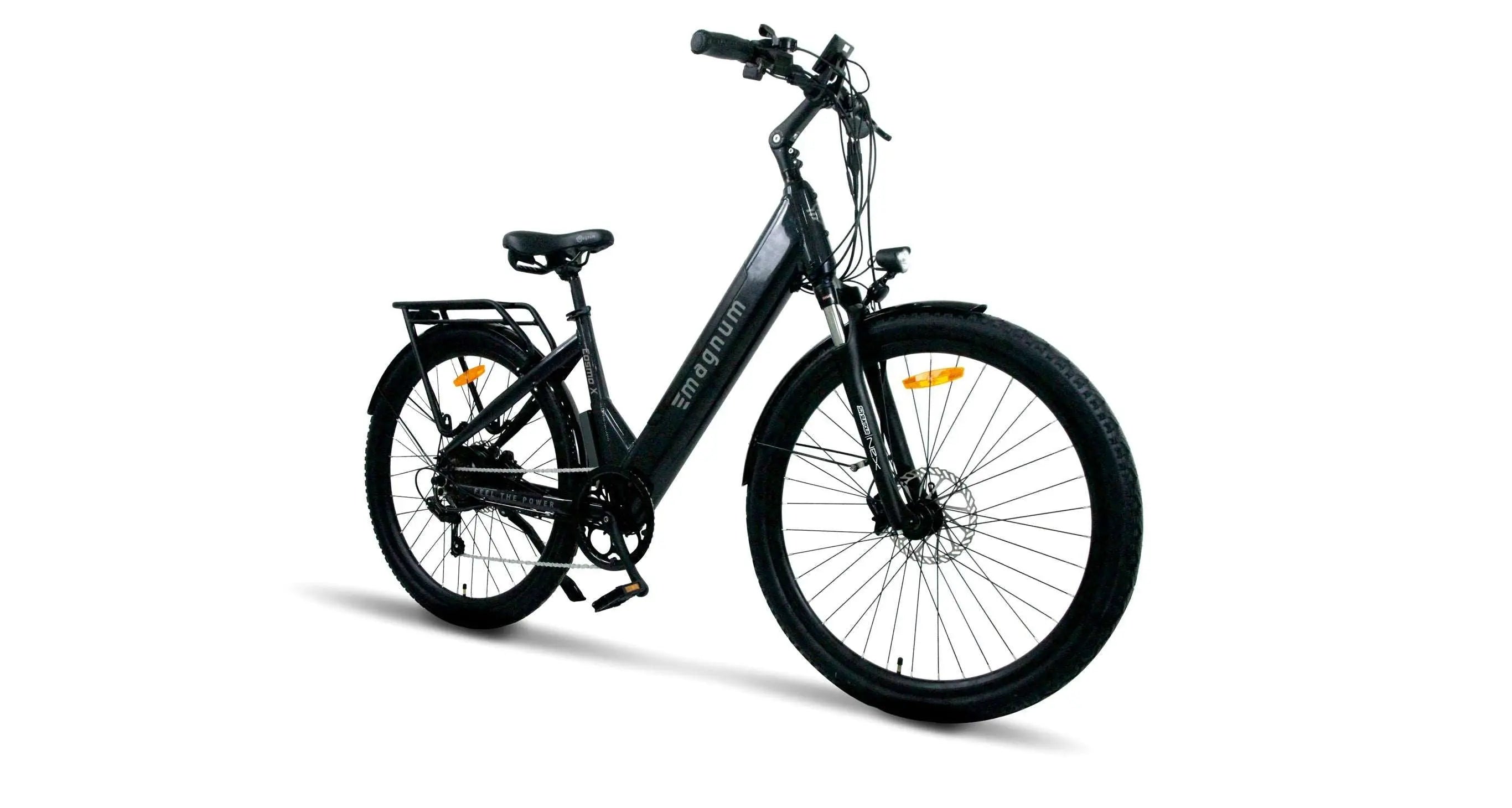

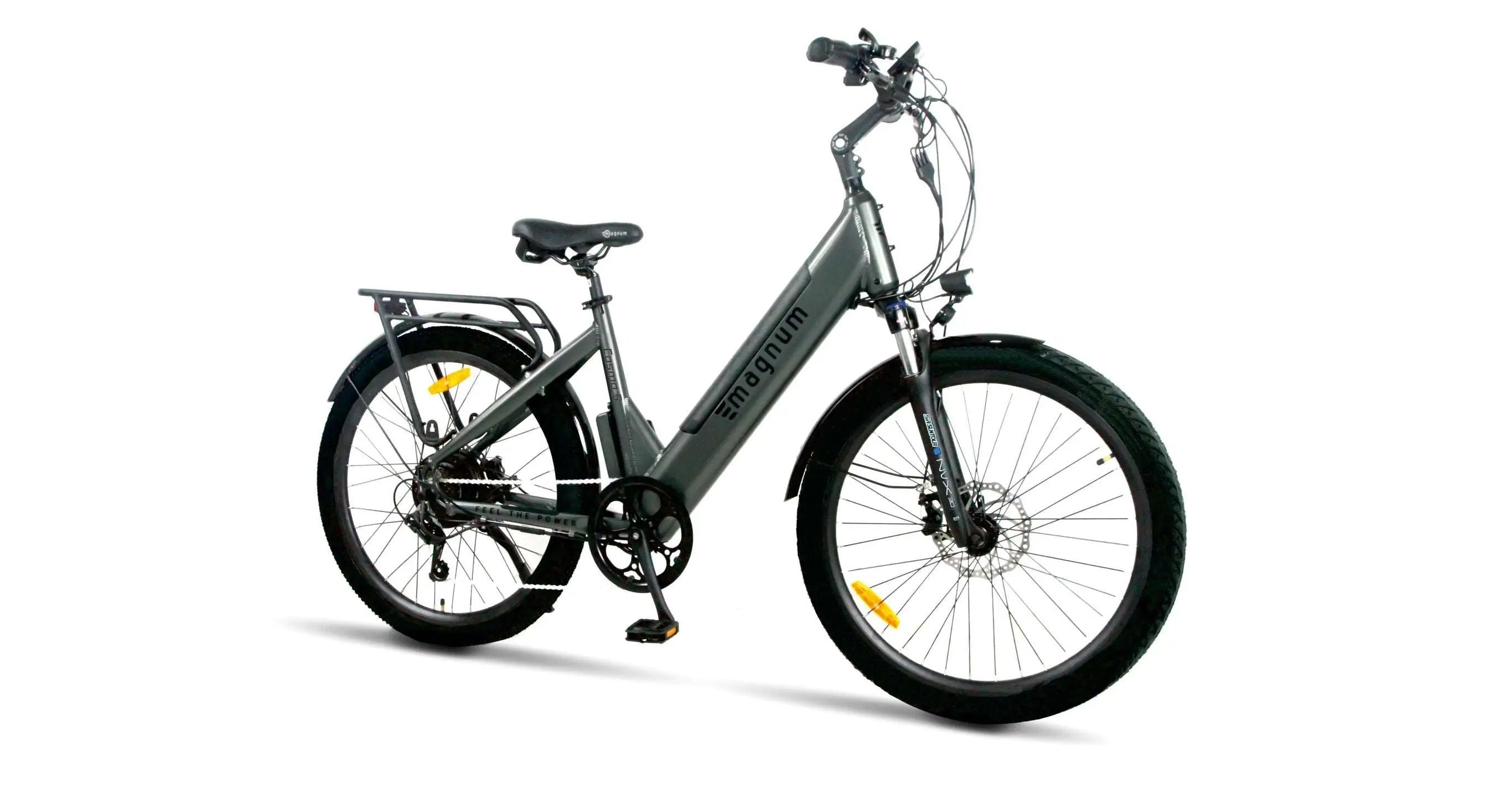

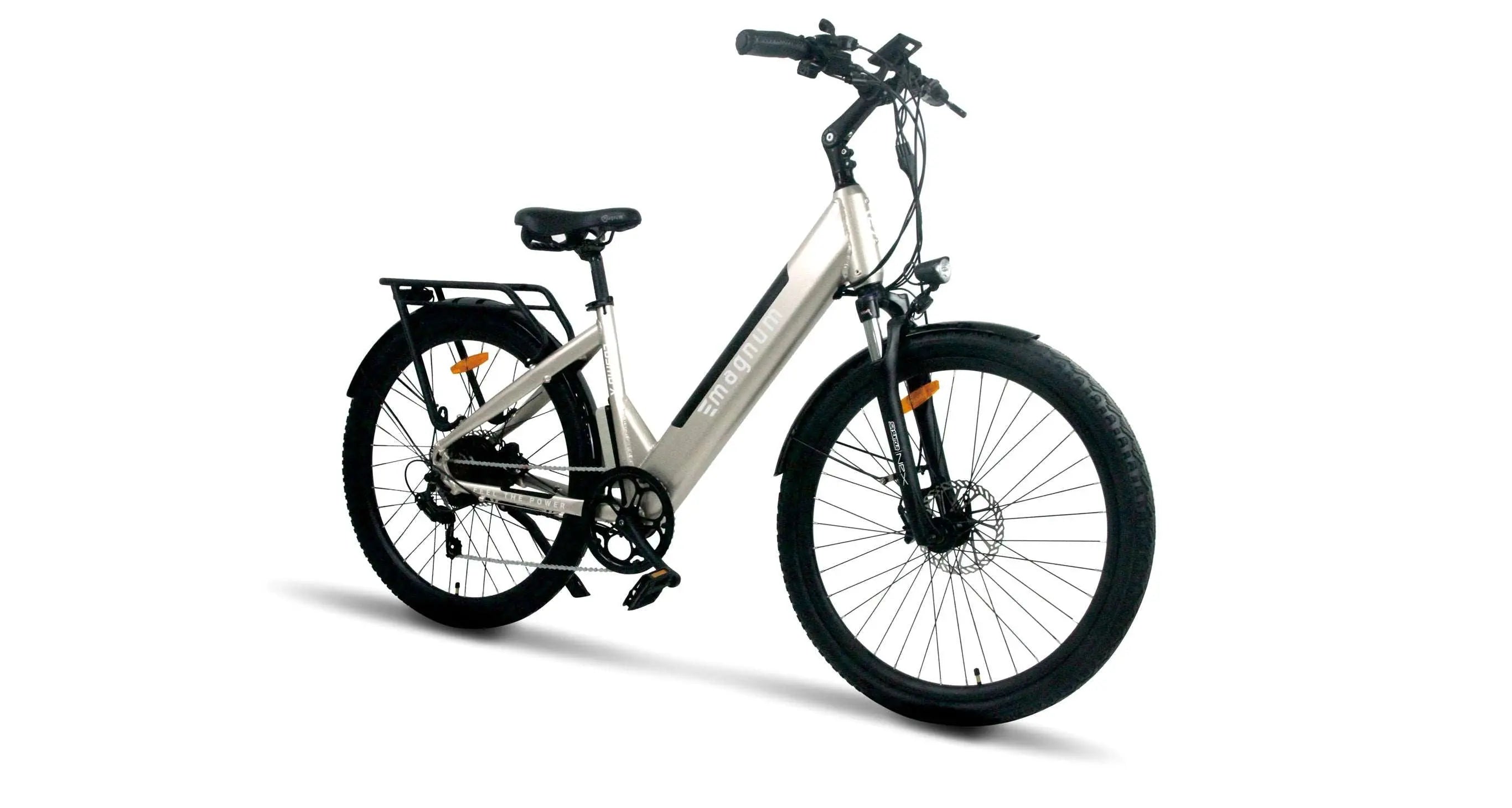

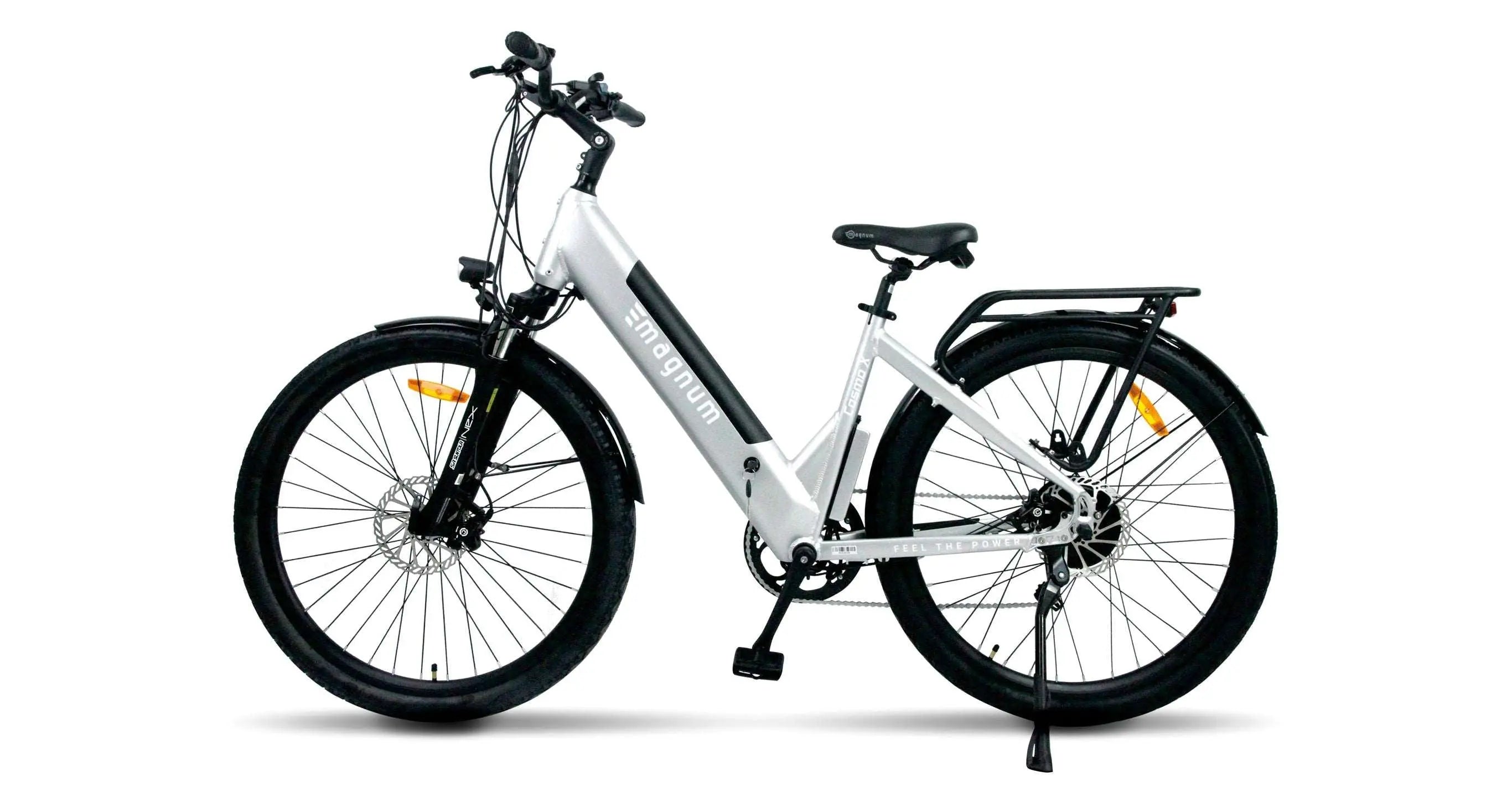

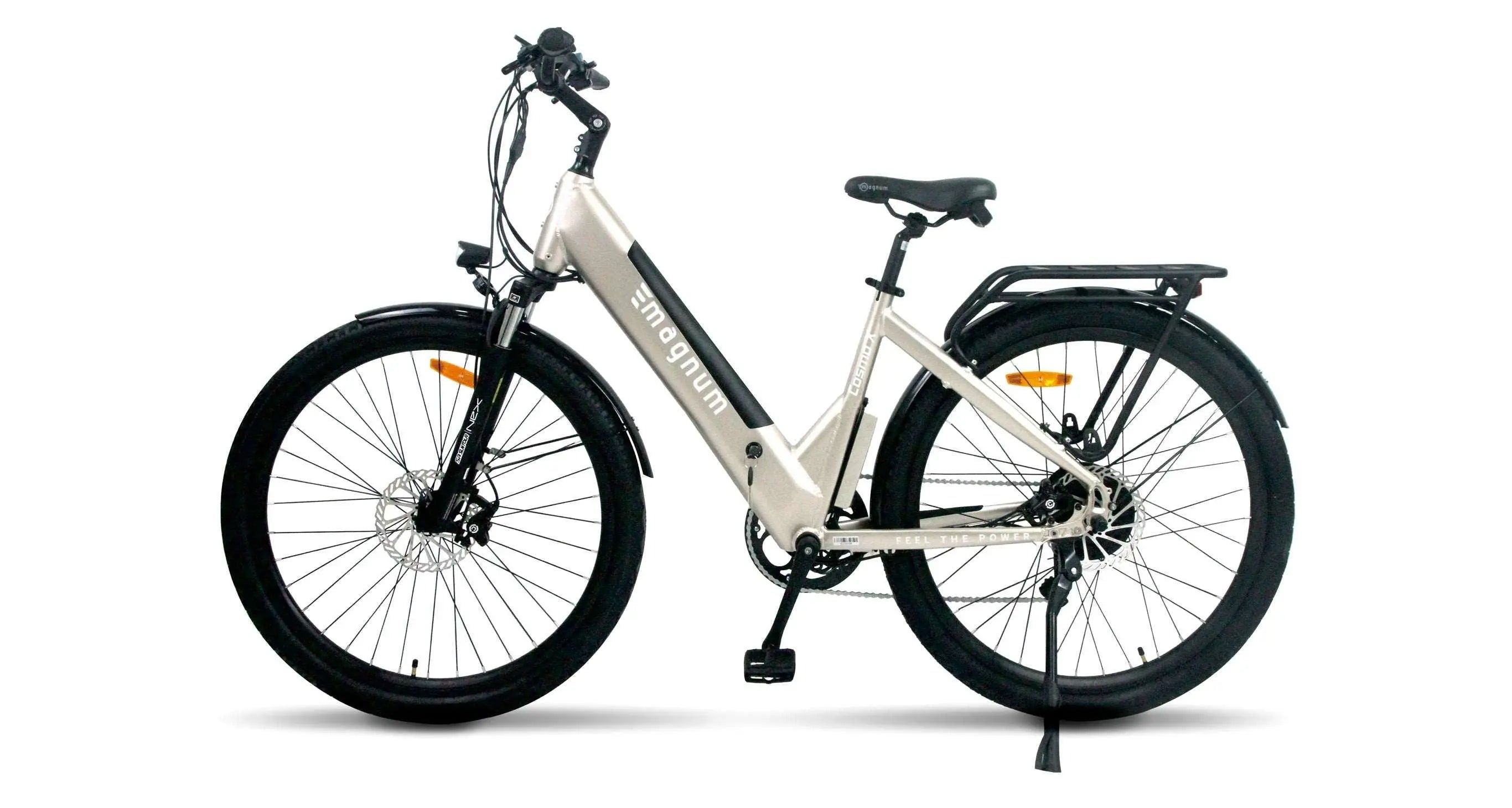

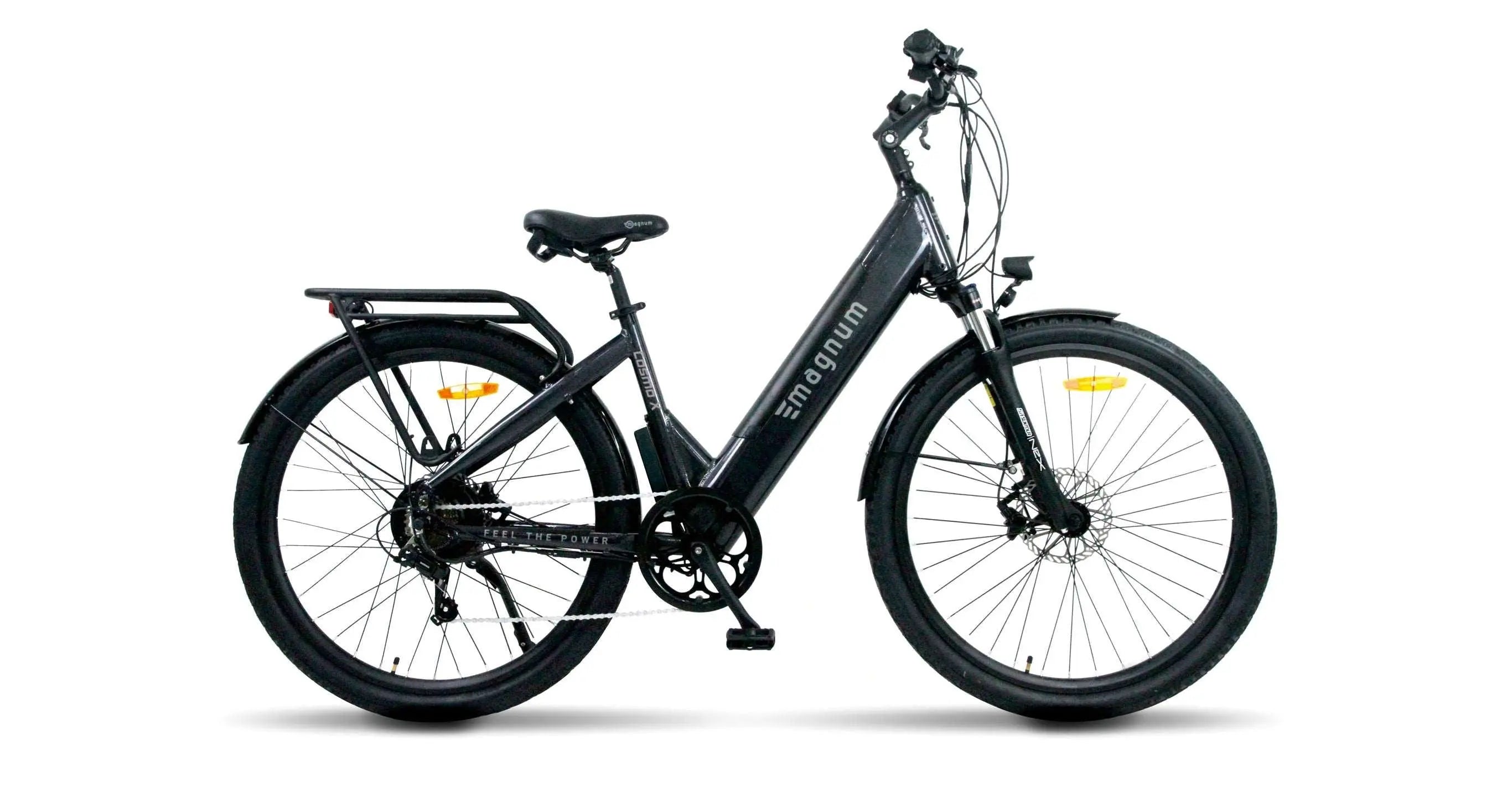

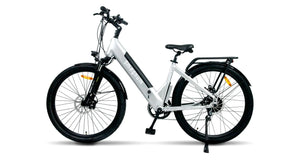

The Magnum Cosmo S - Top Speed 32 KPH, Range 48-80km

Cosmo S

Work hard and play harder—with budget-friendly style. The Magnum Cosmo S has a light low step frame with a fully integrated battery. The power system is 48 Volts running on a 500 Watt motor and a 15Ah battery for the range and power you need to run errands or go on a relaxing bike ride.

• Top speed: 32 km/hr

USER MANUAL

Features & Specs

Electronic Details

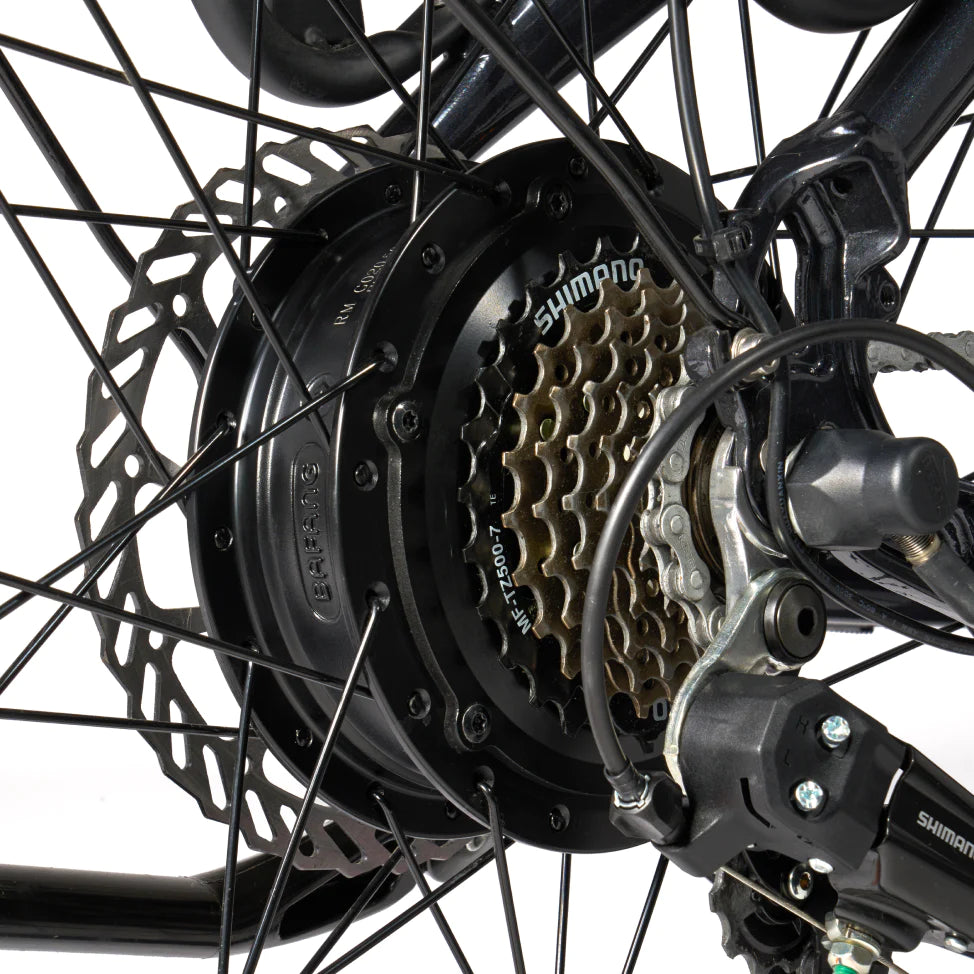

• Motor Brand: Bafang

• Motor Type: Rear Hub-Drive

• Motor Nominal Output: 500 Watts

• Motor Peak Output: 750 Watts

• Battery Brand: Samsung Cells

• Battery Voltage: 48 Volts

• Battery Ah: 15Ah

• Battery Wh: 720Wh

• Battery Chemistry: Li-NMC

• Battery Charge Time (from empty): 7.5 Hours

• Minimum Range: 30 Miles (48 Kilometers)

• Maximum Range: 50 miles (80 Kilometers)

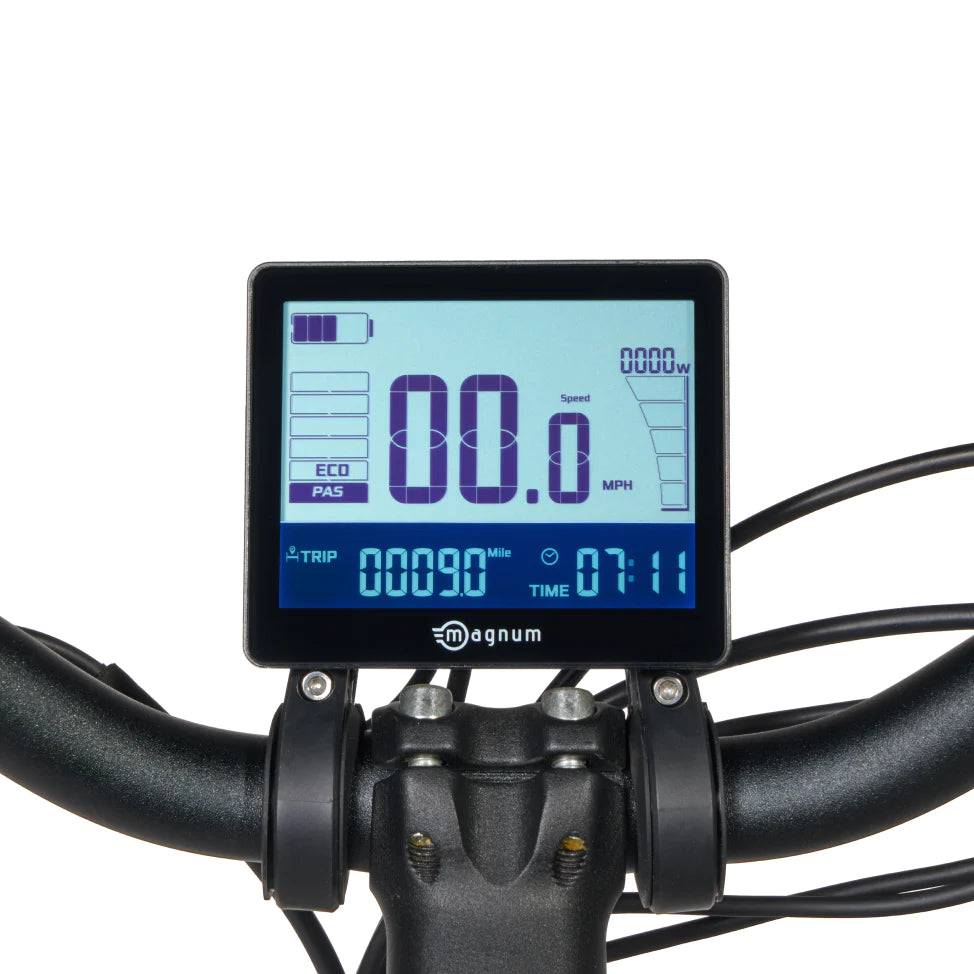

• Display Type: Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit
• Monochrome LCD

• Display Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time

• Display Accessories:: Drive Mode: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
• Top Speed: 25 mph with Pedal Assist, 20 mph with Throttle

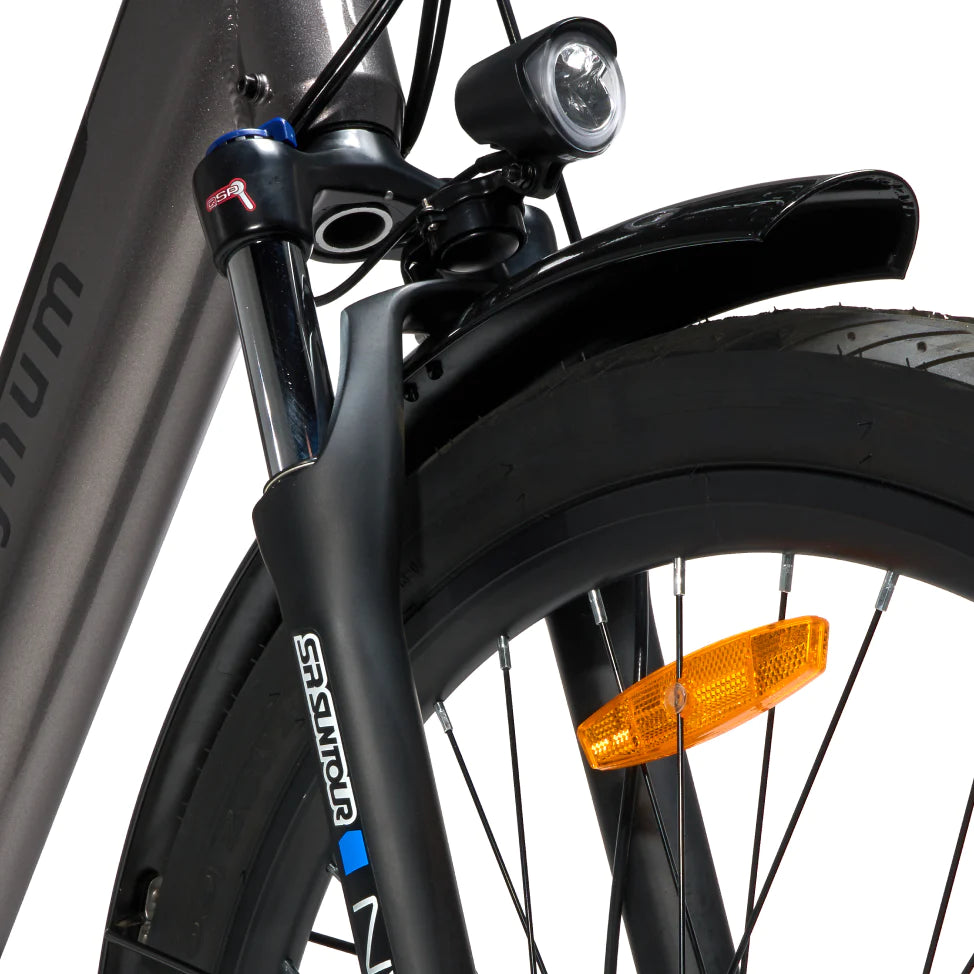

• Lights: Display-Activated Front and Rear Lights

Mechanical

• Frame material: Aluminum Alloy

• Frame size: 18” (46 cm)

• Frame Type: Step Through

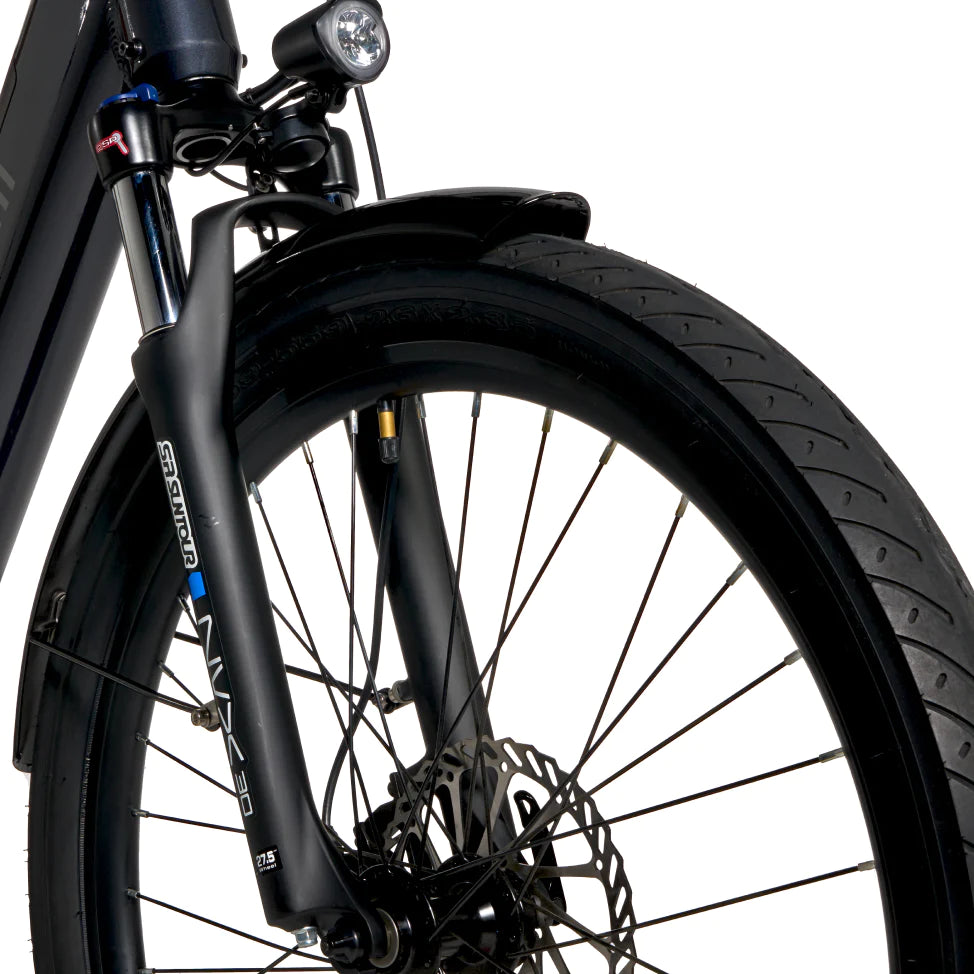

• Fork Details: SR Suntour NVX30 Suspension Fork with Preload Adjustment and Lockout

• Gearing details: Shimano 7-Speed

• Shifter Details: Shimano 7-Speed

• Crank: Aluminum Alloy, 52T, 170mm

• Pedals: Wellgo

• Stem: Adjustable Alloy

• Brakes: Mechanical Disc Brakes

• Grips: Ergonomic Faux Leather Black

• Saddle: Magnum Comfort

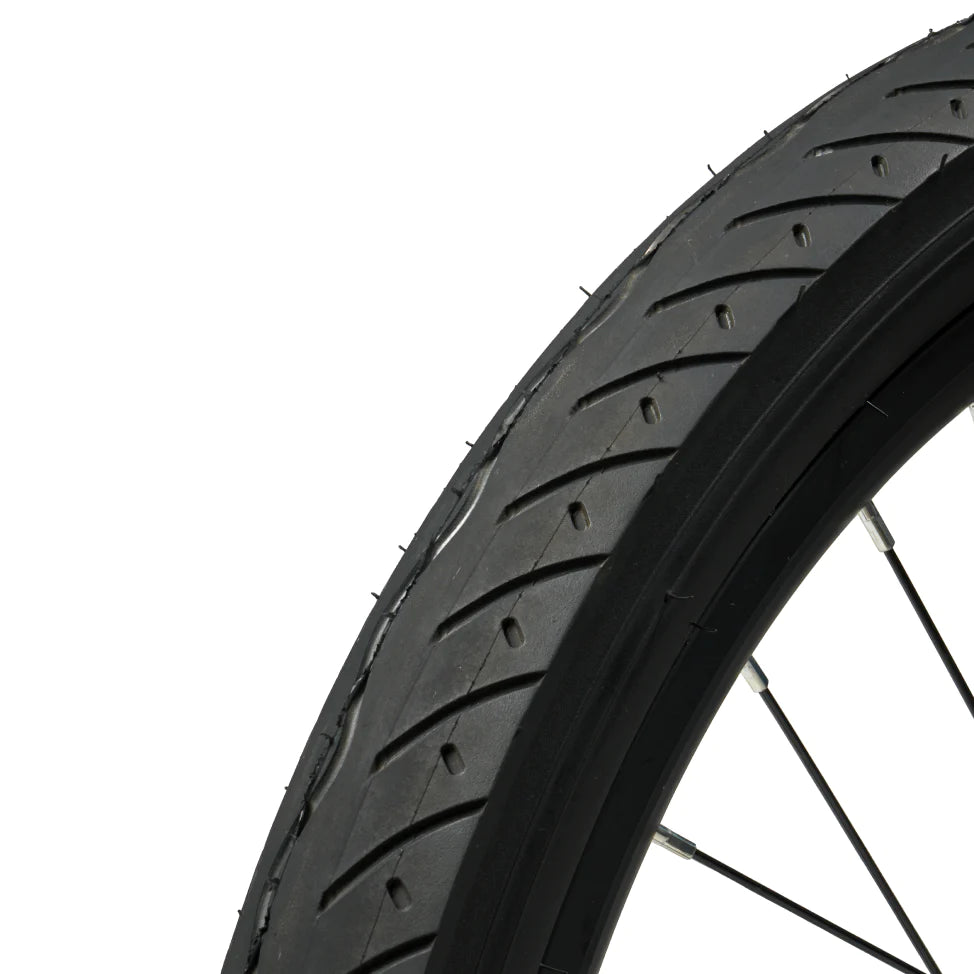

• Tire Brand: Kenda 26 x 2.35

• Wheel size: 26”

• Fenders: Front and Rear Included

• Chain: KMC

Measurements

• Seat Tube: 18” (46 cm)

• Reach: 14.75” (37.5 cm)

• Stand Over Height: 22.5” (57 cm)

• Virtual Top Tube Length: 22” (56 cm)

• Min Saddle Height: 21.75” (55 cm)

• Max Saddle Height: 28” (71 cm)

• Width: 25.75” (65 cm)

• Wheelbase: 44” (112 cm)

• Length: 70.5” (179 cm)

• Total Weight: 60.5 lbs (27.5 kg)

• Battery Weight: 8.5 lbs (3.9 kg)

• Rider minimum height: 5’0”

Included

• Kickstand: Rear-Stay Mounted Kickstand

• Bell: Not included

• Charger: 48v / 2A

• Front Rack: Optional

• Rear Rack: Included

• Accessory Mounts: Front Rack Mounts, Rear Rack Mounts, Front and Rear Fender Mounts




Warranty

MAGNUM BIKES – ONE YEAR LIMITED WARRANTY
