The Magnum Low Rider - Top Speed 32 KPH, Range 48-80km

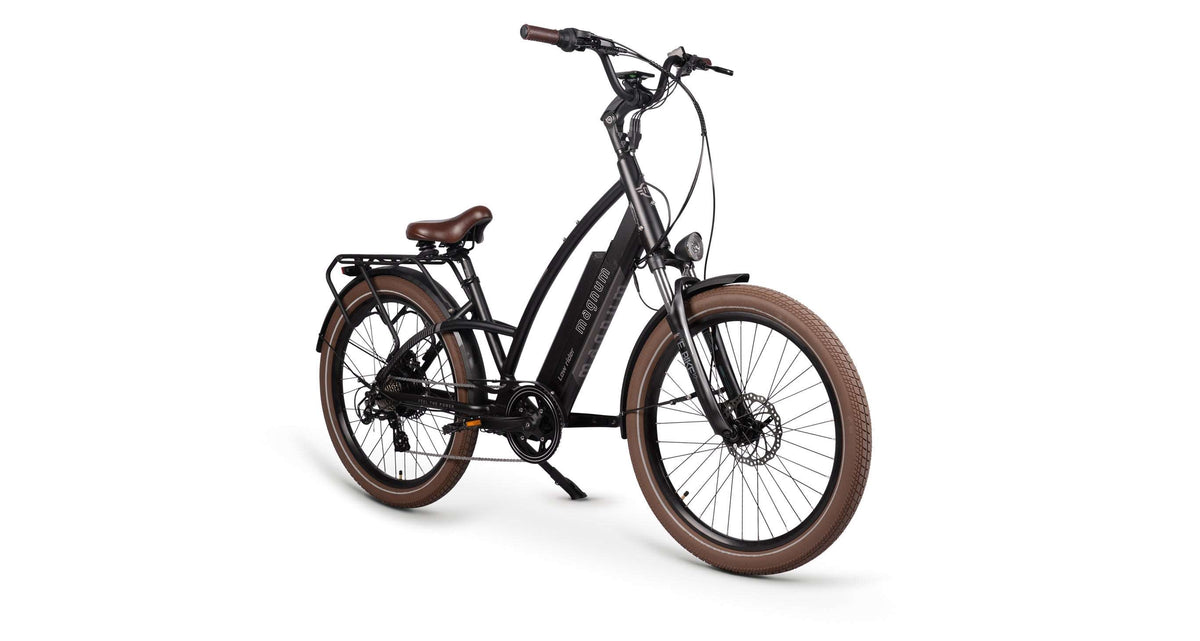

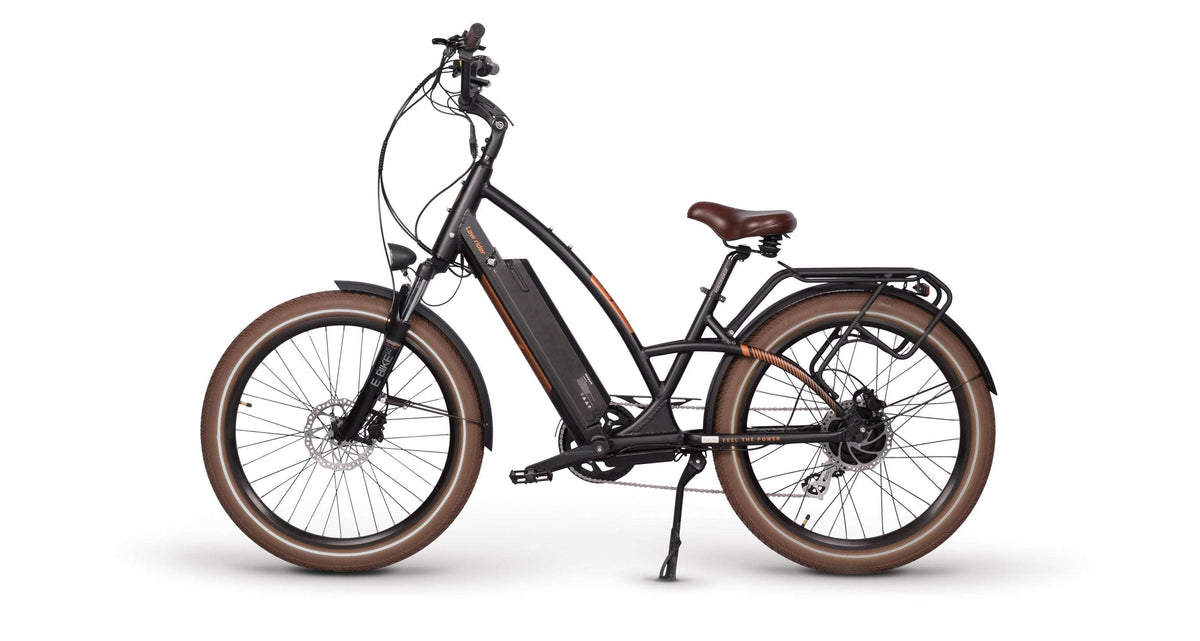

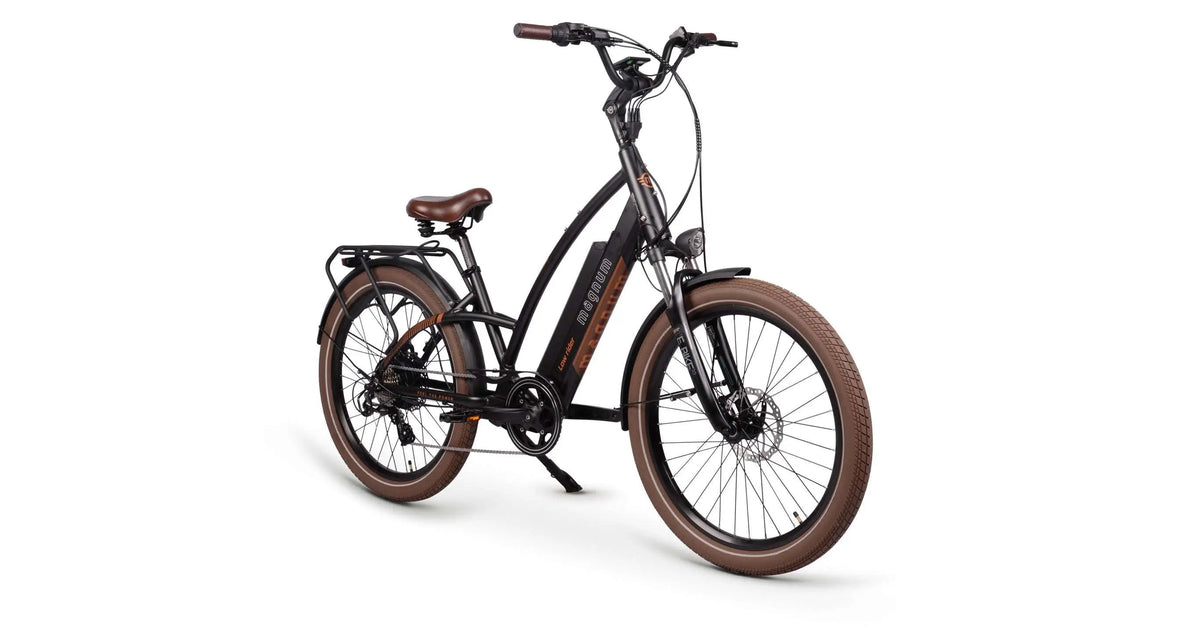

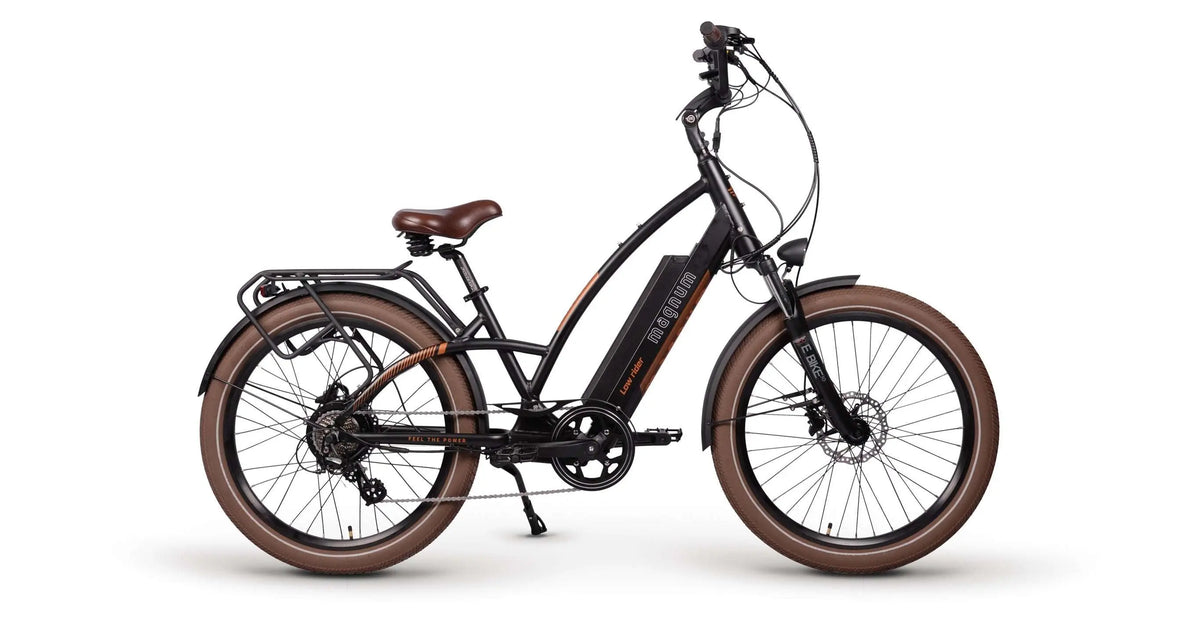

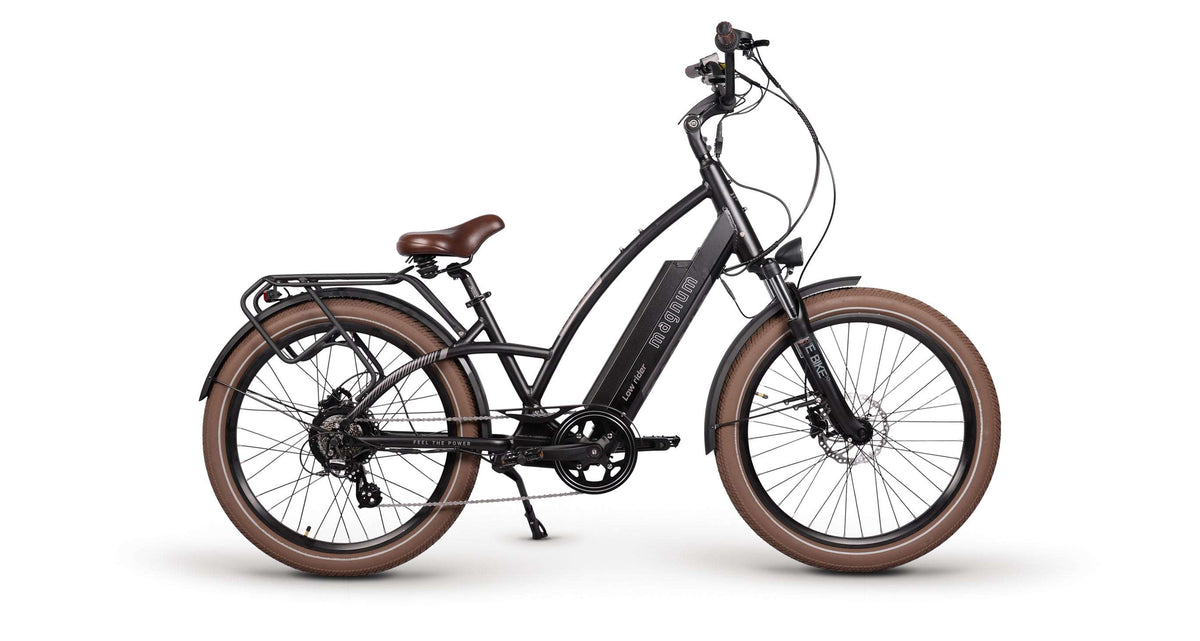

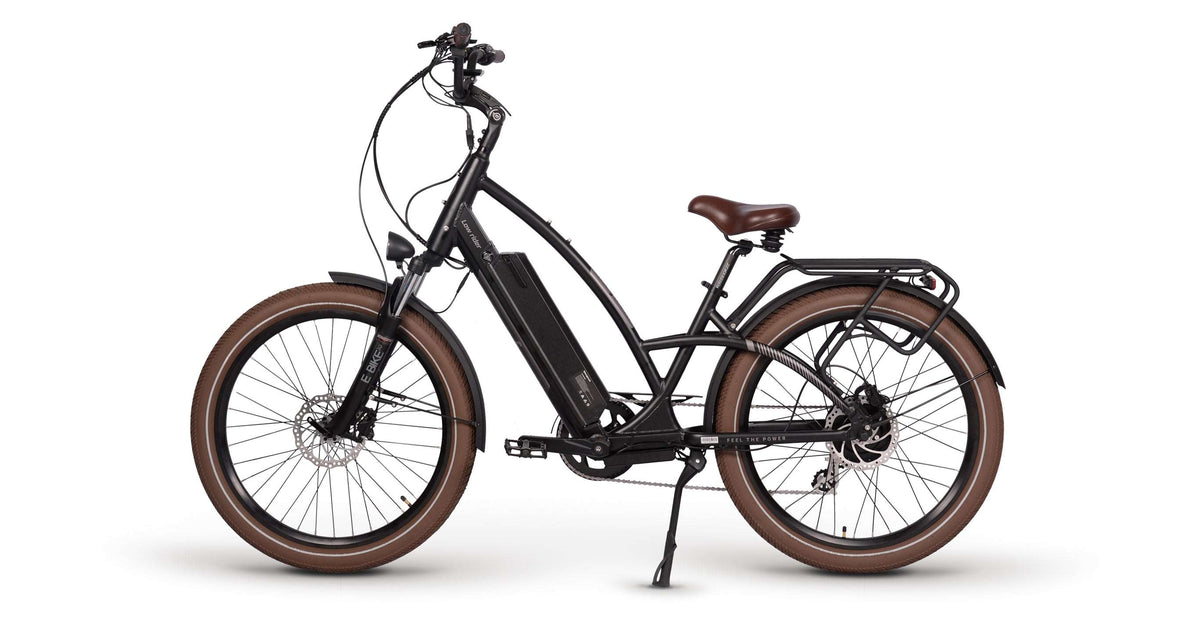

Magnum Low Rider

Cruise with comfort and style! The Magnum Low rider is an easy-to-mount low-step beach cruiser style electric bike well suited for urban cycling.

  • Top speed: 32 km/hr


Features & Specs

Electronic Details

  • Motor Brand: Bafang
  • Motor Type: Rear Hub-Drive
  • Motor Nominal Output: 500 Watts
  • Motor Peak Output: 750 Watts
  • Battery Brand: Samsung Cells
  • Battery Voltage: 48 Volts
  • Battery Ah: 15Ah
  • Battery Wh: 720Wh
  • Battery Chemistry: Li-NMC
  • Battery Charge Time (from empty): 7.5 Hours
  • Minimum Range: 30 Miles (48 Kilometers)
  • Maximum Range: 50 miles (80 Kilometers)
  • Display Type: Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD
  • Display Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
  • Display Accessories
  • Drive Mode: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
  • Top Speed: 25 mph with Pedal Assist, 20 mph with Throttle
  • Lights: Integrated Front and Rear Lights

Mechanical Details

  • Frame material: Aluminum Alloy
  • Frame size: 18.25” (46 cm)
  • Frame Type: Step Thru
  • Fork Details: RST E-Bike 30 Suspension Fork with Lockout and Preload Adjustment
  • Gearing details: Shimano 7-Speed
  • Shifter Details: Shimano 7-Speed
  • Crank: Aluminum Alloy, 52T, 170mm
  • Pedals: Wellgo
  • Stem: Tool-Free Adjustable
  • Brakes: Hydraulic Disc Brakes
  • Grips: Ergonomic Faux Leather
  • Saddle
  • Tire Brand: 26 x 2.4 Brown w/Reflective
  • Wheel size: 26”
  • Fenders: Front and Rear Included
  • Chain: KMC


  • Seat Tube: 18.25” (46.5)
  • Reach: 11.25” (28.5)
  • Stand Over Height: 26.75” (68)
  • Virtual Top Tube Length: 27.25” (69)
  • Min Saddle Height: 24.5” (62)
  • Max Saddle Height: 29.25” (74.5)
  • Width: 28.25” (72)
  • Wheelbase: 49.25” (125)
  • Length: 76.5” (194)
  • Total Weight: 65 lbs (29.5 kg)
  • Battery Weight: 9 lbs. (4 kg)
  • Rider minimum height: 5’4” (162.5 cm)


  • Kickstand: Center-Mount, Left-Side, Adjustable
  • Bell: No
  • Charger: 56V / 2A
  • Front Rack: Optional
  • Rear Rack: Included
  • Fenders: Front and Rear Included
  • Accessory Mounts" Heat Tube Mount, Fender Mount, Rear Rack Mount, Top
  • Tube Mount




Magnum Bikes




Geared Rear-hub Motor-Street Rides

Powerful Bafang Motor

The powerful Bafang geared rear hub motor produces a maximum of 750W to summit climbs and power your longest rides.

Front display Monitor-Street Rides

Velofox LCD Display

The illuminated LCD display lists battery Level, Assist Level, Current Speed, Power Output, Trip distance, Odometer, Range, and Trip time.

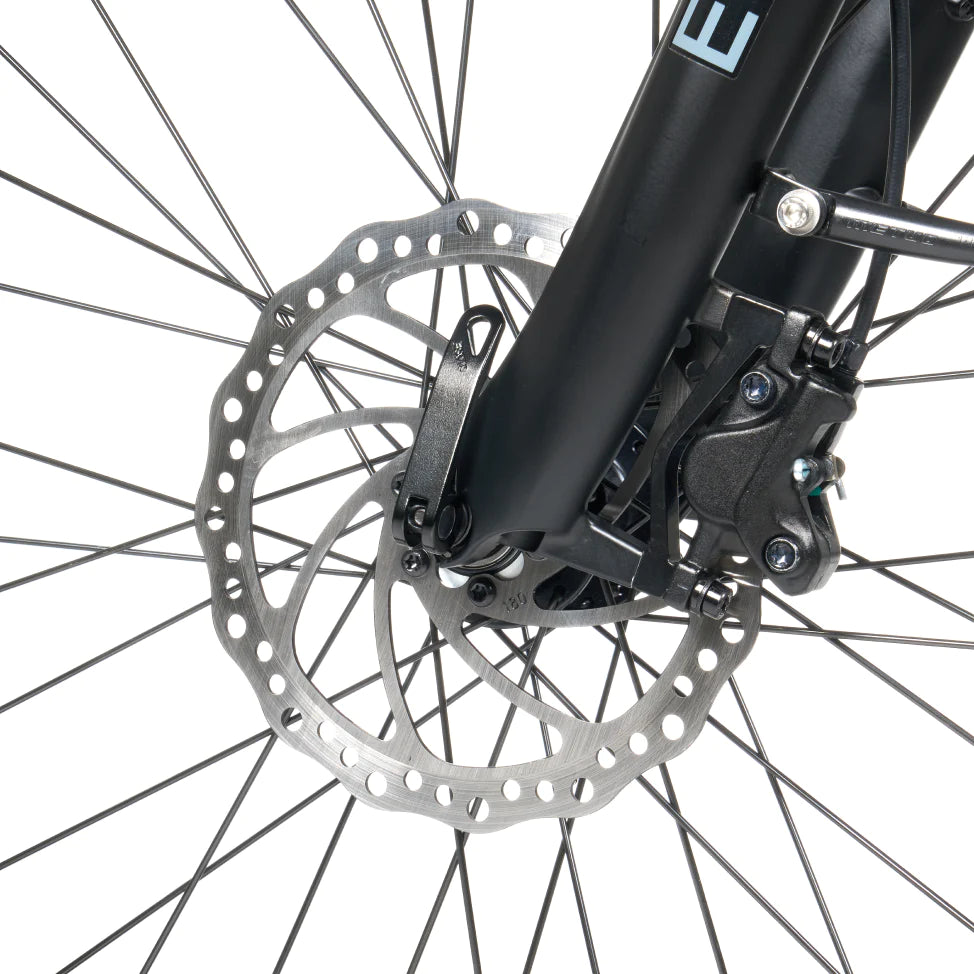

 Powerful Logan Hydraulic Brakes-Street Rides

Powerful Logan Hydraulic Brakes

Logan hydraulic Disk Brakes have large, sturdy rotors and the power and grip to stop you quickly.

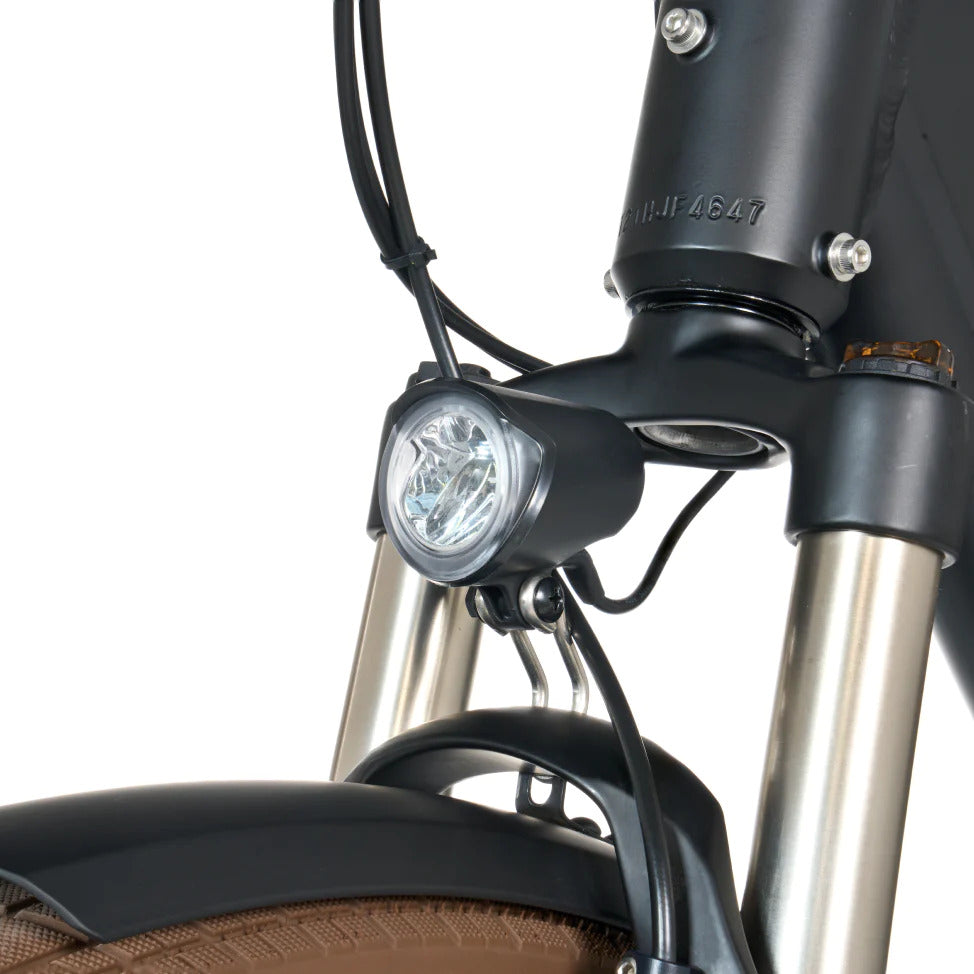

Display Controlled Integrated Lights-Street Rides

Integrated Lights

Front and rear lights provide safety and visibility, and can be turned off during sunny daylight rides.

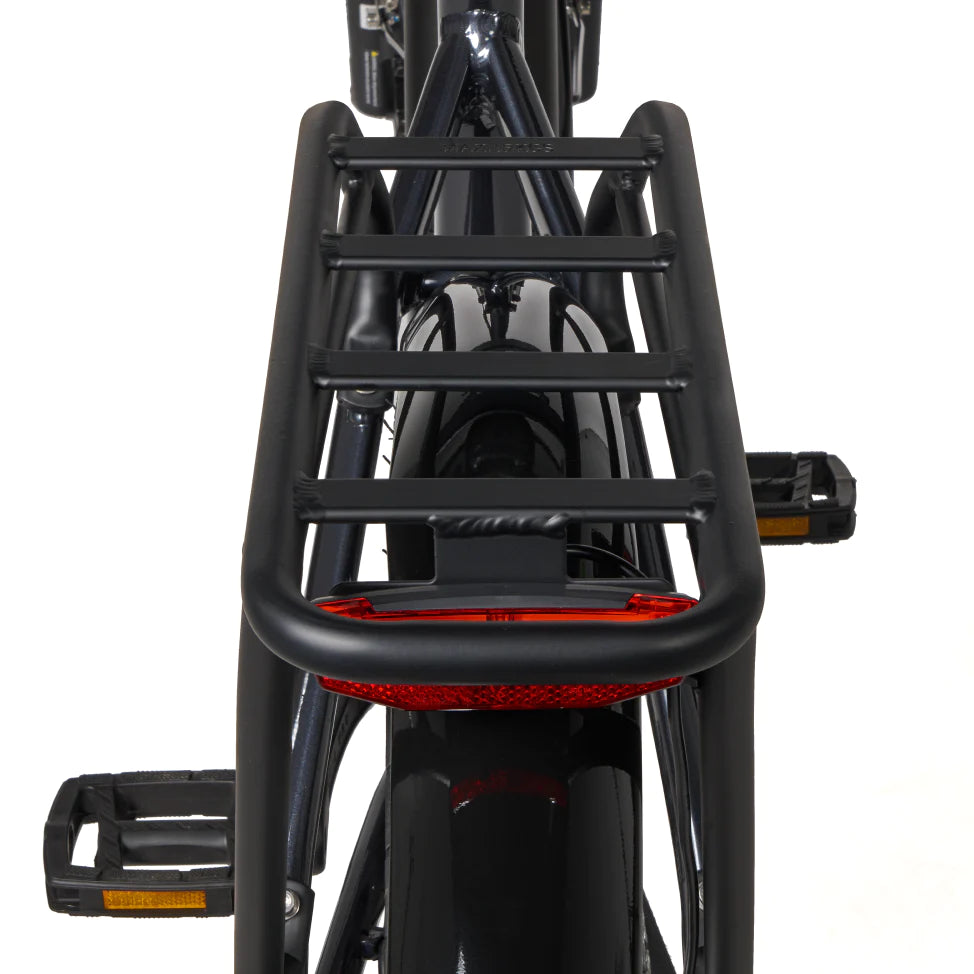

Welded Aluminum Rear Rack-Street Rides

Welded Aluminum Rear Rack

The welded integrated aluminum rear rack is part of the bicycle frame for added strength, and it holds your gear securely.
