The Magnum Navigator S - Top Speed 32 KPH

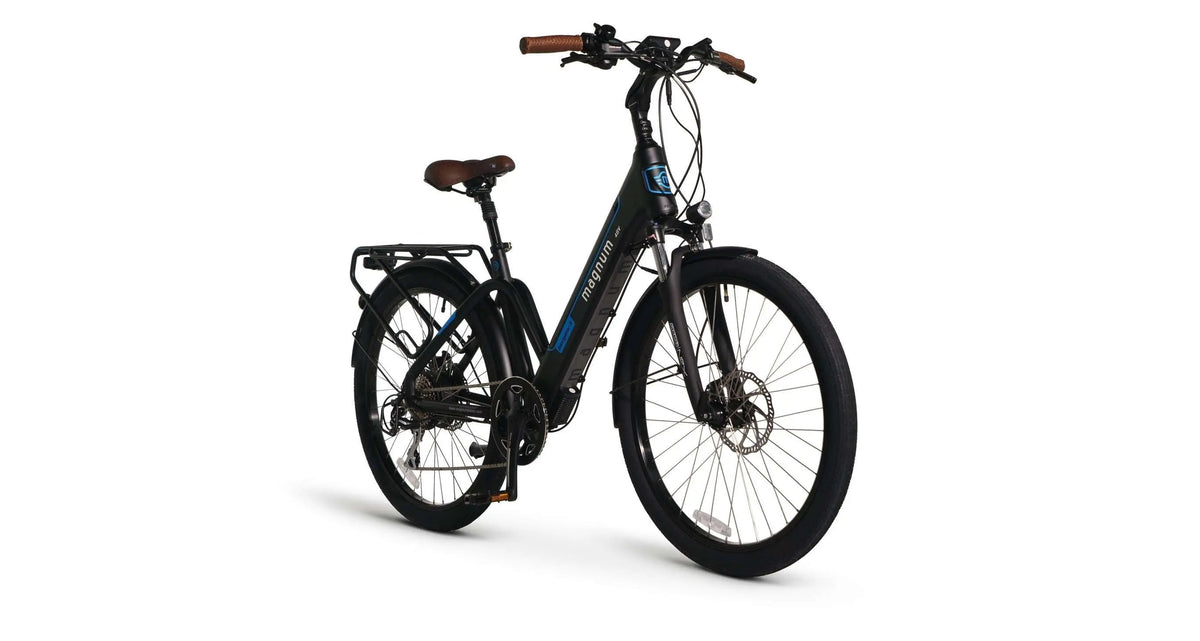

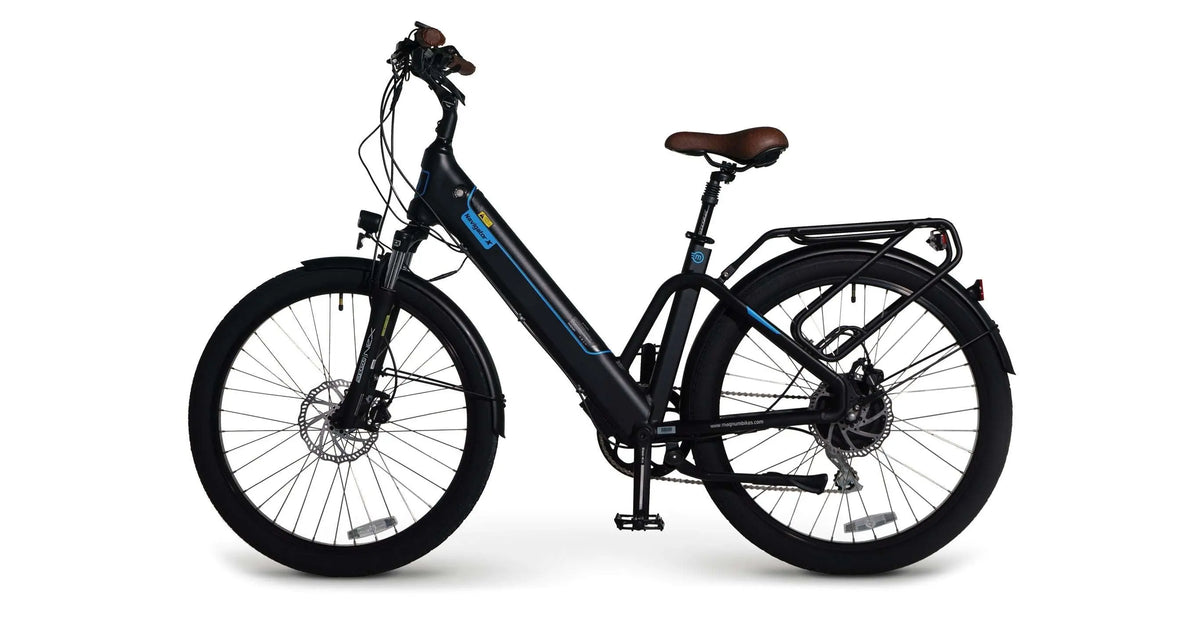

Magnum Navigator S

The Magnum Navigator S is an absolutely stunning beautifully designed, purpose built hybrid electric bike with wide 26 x 2.25 CST tires, an adjustable handlebar, and a truly beautiful heavy duty low step design. The Navigator is an urban electric bicycle with an integrated 48V/ 12Ah battery housed seamlessly in the down tube of the bicycle. This sleek design provides for complete stability while riding and an even weight distribution making for a better center gravity all around!

• Top speed: 32 km/hr

USER MANUAL

Features & Specs

Electronic Details

• Motor Type: Rear Geared Hub Motor
  Motor Output: 48v 500w
  Battery: 48v / 10ah /480wh
  Battery Chemistry: (Li-ncm)
  Estimated Charge Time: 6 Hours
  Estimated Range: 40-60 KM
  Display Type: Large LCD display
  Drive Modes: Trigger throttle, Cadence sensing pedal assist, walk mode
  Top Speed: 40 KM/HR with pedal assist, 32 KM/HR throttle only
  Lights: Integrated Front and Rear

Bicycle Details

• Total Weight: 60lbs
  Frame Type: Low Step Alloy
  Fork Details: SR Suntour NEX with Preload Adjustment
  Gearing Details: Shimano Tourney 7 Speed
  Shifter Details: Shimano 7 Speed
  Stem: Adjustable Alloy
  Brake Details: Tektro mechanical disc brakes
  Saddle: Selle Royale Brown
  Seatpost: Promax Aluminum with suspension; 27.2 x 250mm
  Fenders: Front and rear fenders
  Rear Rack: Included
  Wheel Size: 26 x 2.15″
