Magnum Metro X - Top Speed 32 KPH, Range 48-80km

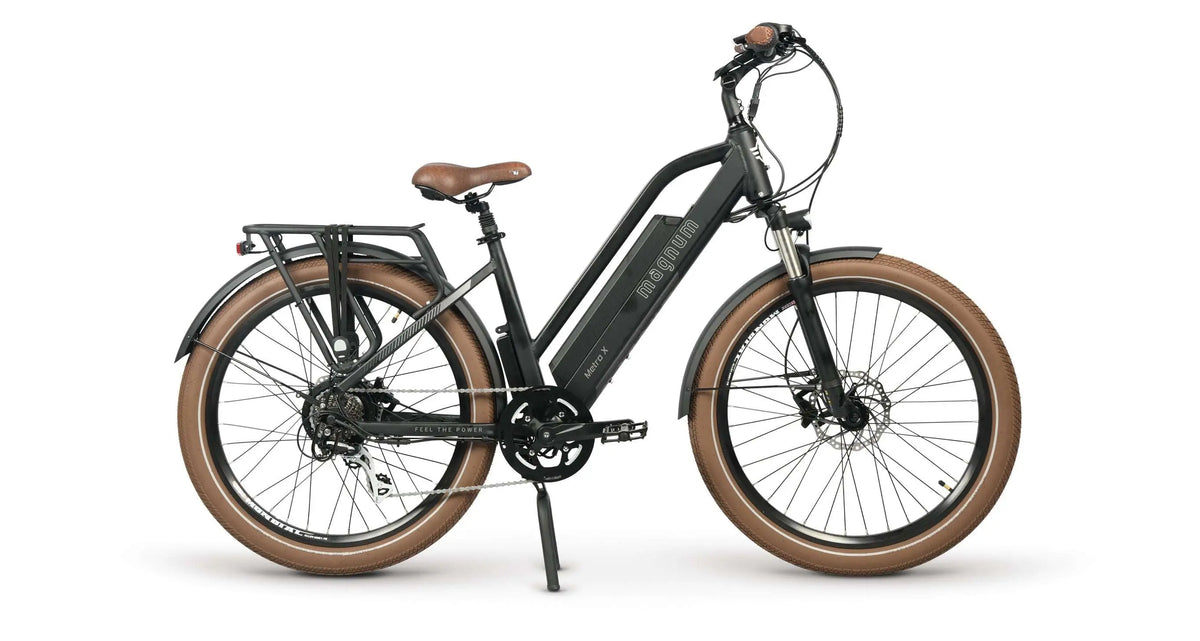

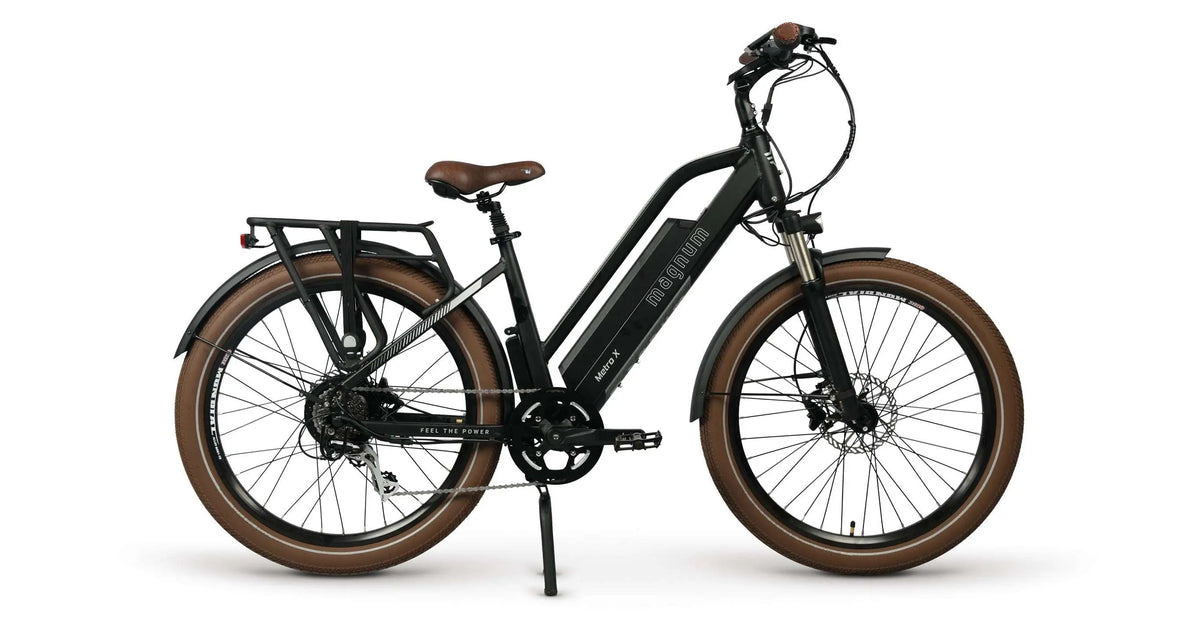

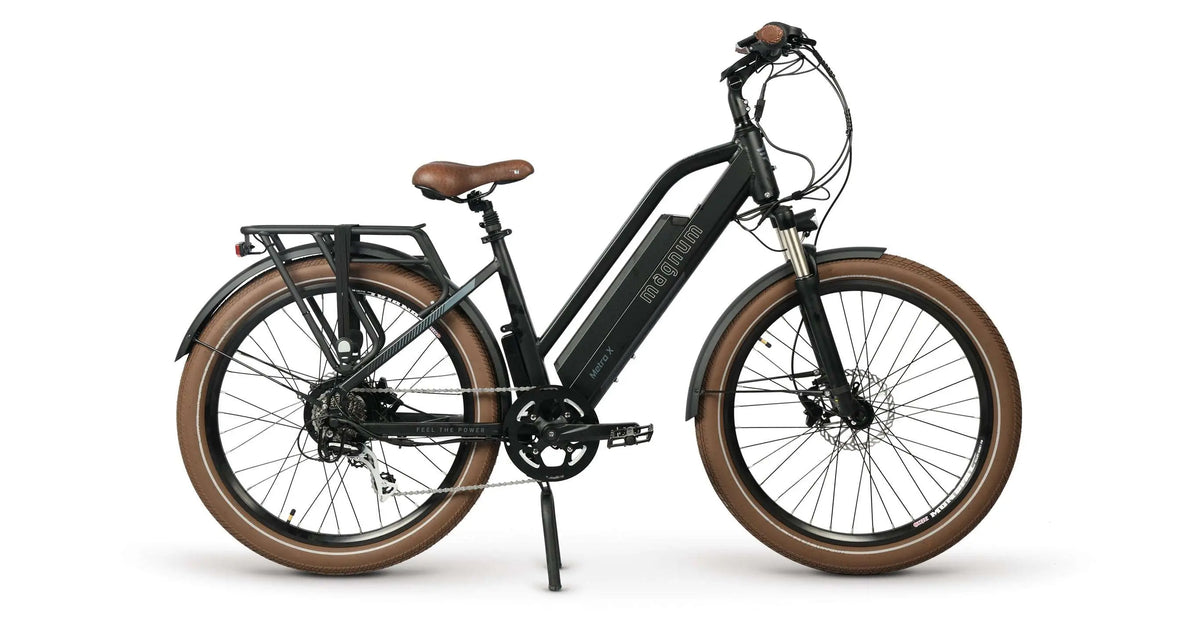

Magnum Metro X

The Magnum Metro X does it all! It's a versatile touring/all-road electric bike built for road riding, commuting, recreational riding, and gravel trails. It has a step-thru frame for easy mounting and dismounting, and the 48V 500W power system offers both pedal assist and throttle mode.

• Top speed: 32 km/hr

USER MANUAL

Features

Electronic Details

• Motor Brand: Bafang

• Motor Type: Geared Rear Hub

• Motor Nominal Output: 500 Watts

• Motor Peak Output: 750 Watts

• Battery Brand: Samsung Cells

• Battery Voltage: 48 Volts

• Battery Ah: 15Ah

• Battery Wh: 720Wh

• Battery Chemistry: Li-NMC

• Battery Charge Time (from empty): 7.5 Hours

• Minimum Range: 30 Miles (48 Kilometers)

• Maximum Range: 50 miles (80 Kilometers)

• Display Type: Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD

• Display Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time

• Display Accessories

• Drive Mode

• Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode

• Top Speed: Up to 28 mph with Pedal Assist, 20 mph with Throttle

• Lights: Integrated front and rear light controlled from the display / Brake Light activated when braking.

Bicycle Details

• Frame material: Aluminum Alloy

• Frame: Step-Thru
• Frame size: 17.25” (44 cm)

• Fork Details: Suspension Fork with Lockout and Preload Adjust

• Gearing details: Shimano 7-Speed

• Shifter Details: Shimano 7-Speed

• Crank: Aluminum Alloy, 52T, 170mm

• Pedals: Wellgo

• Stem: Promax Tool-Free Adjustable

• Brakes: Clarks Hydraulic Disc Brakes

• Grips: Brown Faux Leather

• Saddle: Selle Royal Polygel

• Tire Brand: Innova 26 x 2.4

• Wheel size: 26”

• Fenders: Front and Rear Included

• Chain: KMC
• Seat Tube: 17.25” (44 cm)

• Reach: 16.5” (42 cm)

• Stand Over Height: 26.75” (68 cm)

• Virtual Top Tube Length: 23.25” (59 cm)

• Min Saddle Height: 23.25” (59 cm)

• Max Saddle Height: 29” (74 cm)

• Width: 27.25” (69 cm)

• Wheelbase: 44” (112 cm)

• Length: 71” (180 cm)

• Total Weight: 62 lbs (28 kg)

• Battery Weight: 9 lbs (4.1 kg)

• Rider minimum height: 5’0”
