Magnum Cruiser E-Bike - Top Speed 32 KPH, Range 80km

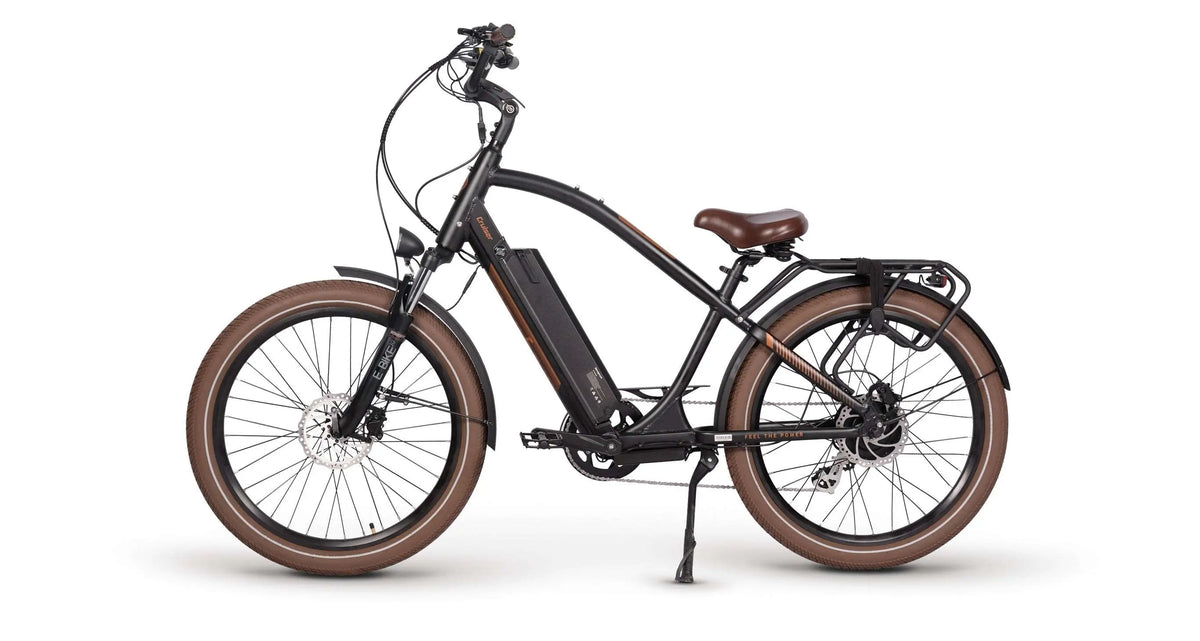

Magnum Cruiser

The Magnum Cruiser is designed with a more relaxed bike geometry, lowering the rider's center of gravity. Their comfortable riding position places the rider sitting slightly reclined and closer to the ground with pedals out front. Large, plush saddles and wide tires for stability and comfort complete the stylish, carefree Magnum Cruiser experience.

• Top speed: 32 km/hr

USER MANUAL

Features & Specs

Electronic Details

• Motor: 8Fun – Rear-Mounted Geared Hub 500 watt
• Battery: Samsung / DLG / Panasonic  48 volt  13 ah (624 wh) – Lithium Nickel Cobalt Manganese (Li-NCM)
• Estimated Charge Time / Estimated Min and Max Range: 6.5 hrs / 48-96 km/hr

• Display Type / Readouts: Fixed Backlit Monochrome LCD / Power (Current), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time
• Drive Modes: Cadence Sensing Pedal Assist, Trigger Throttle
• Top Speed: 45 km/hr (32 km/hr throttle only)

Bike Details

• Frame Types / Frame Sizes: Semi Step Thru / 26″*457MM
• Frame Material: 6061 Aluminum Alloy
• Fork Details: RST, Neon-TNL,with oil suspension and lock system
• Attachment Points: Rear Rack Bosses, Fender Bosses
• Gearing Details / Shifter Details: 8 Speed 1×8 Shimano Altus M310 / Shimano Triggers on Right Bar
• Cranks / Pedals: Prowheel 48T / Wellgo B087, Aluminum Alloy Platform
• Headset / Stem / Handlebar: Oversized, Tapered / Promax, Adjustable / Mid-Rise
• Brakes Details: Tektro Hydraulic Disc Brakes with brake sensor with 180 mm Front Rotor and 160 mm Rear Rotor
• Grips / Saddle: Flat Rubber / Selle Royal Gel (Brown)
• Seatpost / Seatpost Diameter:  Promax / 30.4*400MM
• Rims: Double Walled
• Fenders: Front and Rear
• Tires: Schwalbe Big Ben 26 in (26″ x 2.15″)/ Kevlar Lined, Reflective Sidewall Stripe / Schrader Valve
• Bike Weight: 59 lbs
• Max Load: 265lbs

*Some assembly required
