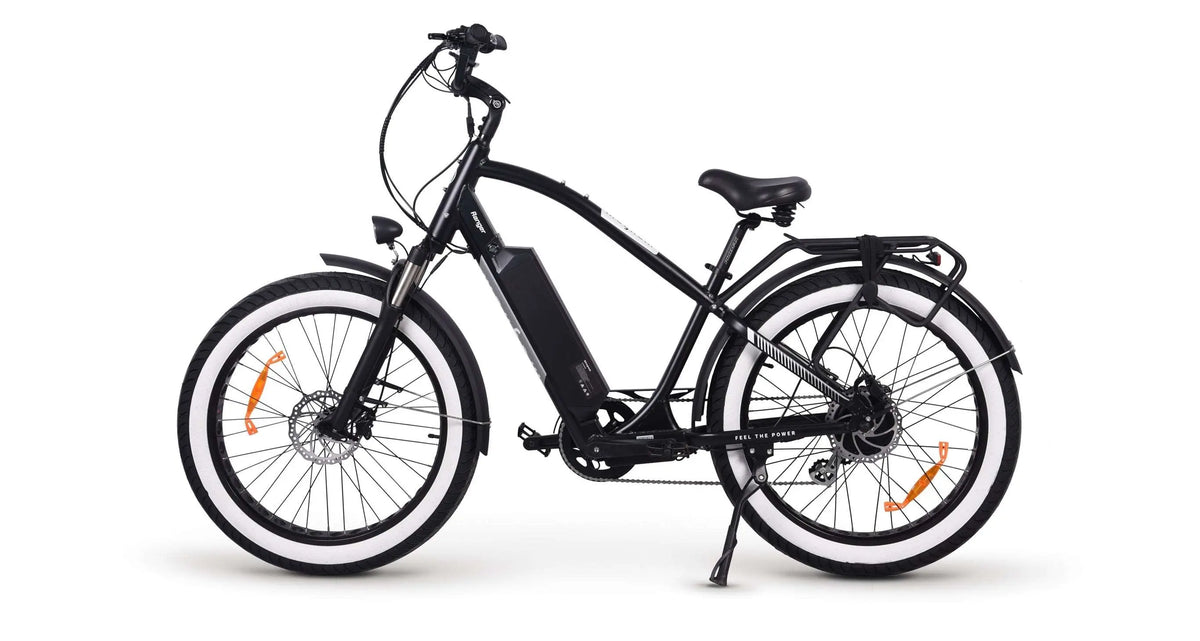

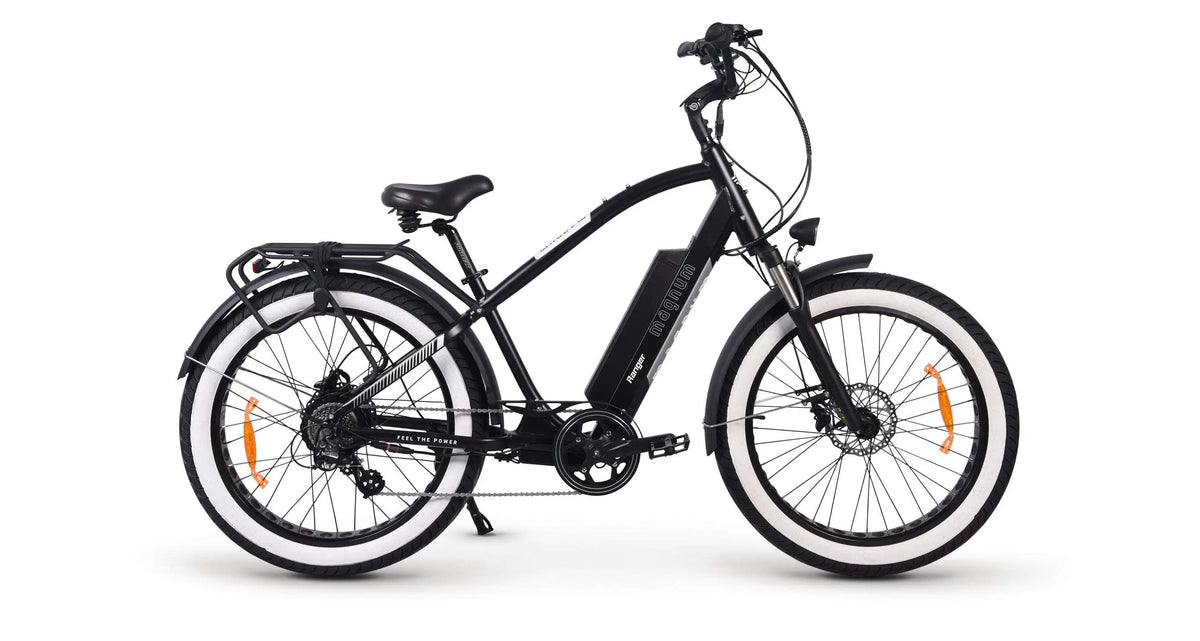

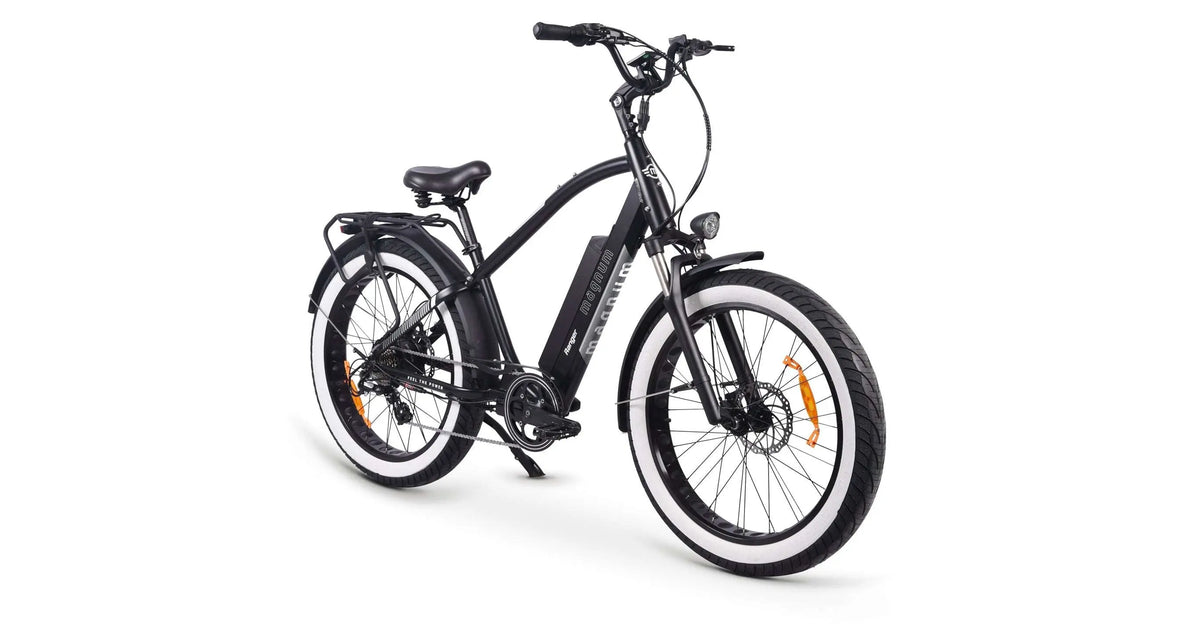

Magnum Ranger - Fully-Loaded Fat Tire Cruiser - Top Speed 32 KPH, Range 56-105km


Magnum Ranger

The Magnum Ranger will take you where your heart desires - in comfort and style! Its comfortable riding position places the rider sitting slightly reclined and closer to the ground with pedals out front. A large, plush saddle and wide tires for stability and comfort complete the stylish, carefree Magnum Ranger experience.

  • Top speed: 32 km/hr


Features & Specs

Electronic Details

  • Motor Brand: Das-Kit
  • Motor Type: Rear Hub-Drive
  • Motor Nominal Output: 750 Watts
  • Motor Peak Output: 1000 Watts
  • Battery Brand: N/A
  • Battery Voltage: 48 Volts
  • Battery Ah: 21Ah
  • Battery Wh: 1008Wh
  • Battery Chemistry: Li-NMC
  • Battery Charge Time (from empty): 10.5 Hours
  • Minimum Range: 35 Miles (56 Kilometers)
  • Maximum Range: 65 Miles (105 Kilometers)
  • Display Type: Das-Kit C7, Backlit, Monochrome LCD
  • Display Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
  • Display Accessories: Drive Mode: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
  • Top Speed: Up to 28 mph with Pedal Assist, 20 mph with Throttle
  • Lights: Independent Front Headlight, Independent Rear Light

Bicycle  Details

  • Frame material: Aluminum Alloy
  • Frame size: 19.5” (49.5 cm)
  • Frame Type: Low Step/Cruiser
  • Fork Details: Rst Guide Spring Suspension, 80mm Travel With Lockout
  • Gearing details: Shimano 8-Speed
  • Shifter Details: Shimano 8-Speed
  • Crank: Prowheel, Aluminum Alloy, 48T, 170mm
  • Pedals: Wellgo
  • Stem: Promax Tool-free Adjustable
  • Brakes: Tektro Hydraulic Disc Brakes
  • Grips: Faux Leather
  • Saddle: Selle Royal with Gel and Dual Spring Suspension
  • Tire Brand: 26 x 4.0
  • Wheel size: 26”
  • Fenders: Front and Rear Included
  • Chain: KMC
  • Seat Tube: 19.5” (49.5 cm)
  • Reach: 11” (28 cm)
  • Stand Over Height: 34” (86 cm)
  • Virtual Top Tube Length: 26.75” (68 cm)
  • Min Saddle Height: 24.5” (62.5 cm)
  • Max Saddle Height: 30.5” (77.5 cm)
  • Width: 26.5” (67 cm)
  • Wheelbase: 50” (127 cm)
  • Length: 78” (198 cm)
  • Total Weight: 72 lbs (32.66 kg)
  • Battery Weight: 9 lbs (4 kg)
  • Rider minimum height: 5’5”




    Magnum Bikes

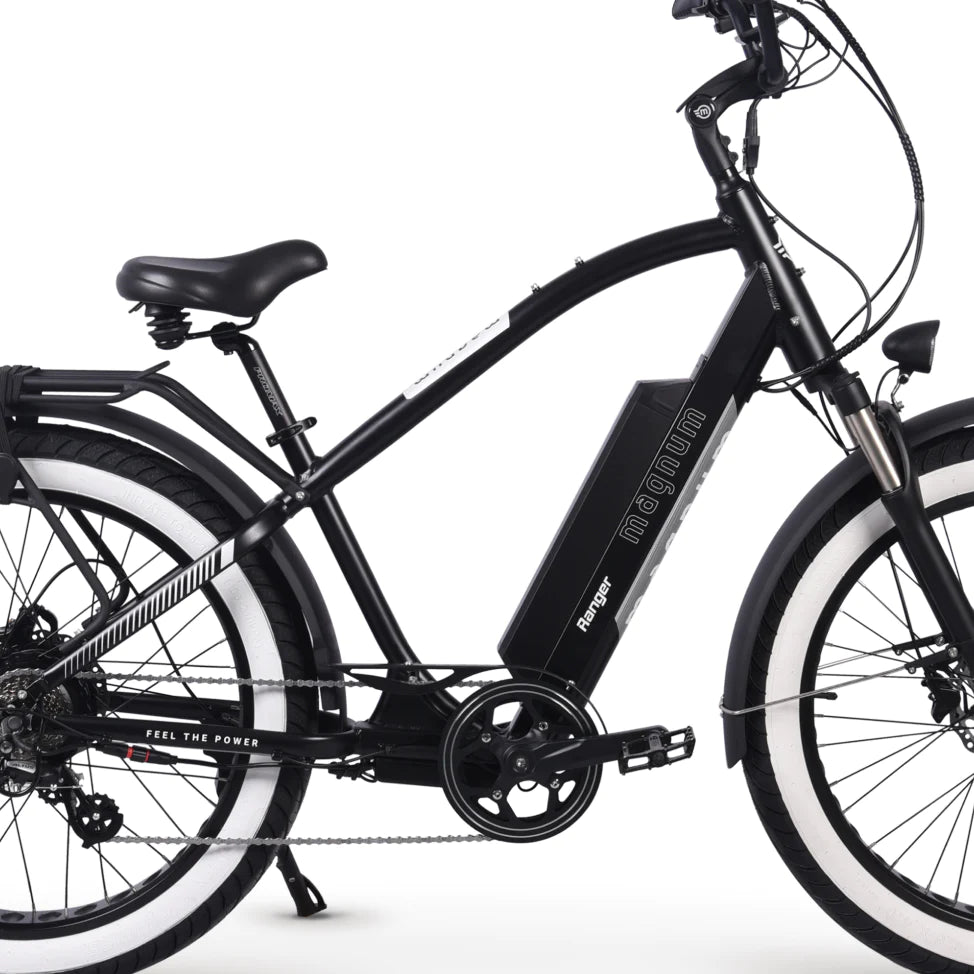

    Magnum-Designed Sleek Frame- Street Rides

    Magnum-Designed Sleek Frame

    The Ranger's stout, sleek curved frame lends a touch of style and nostalgia.

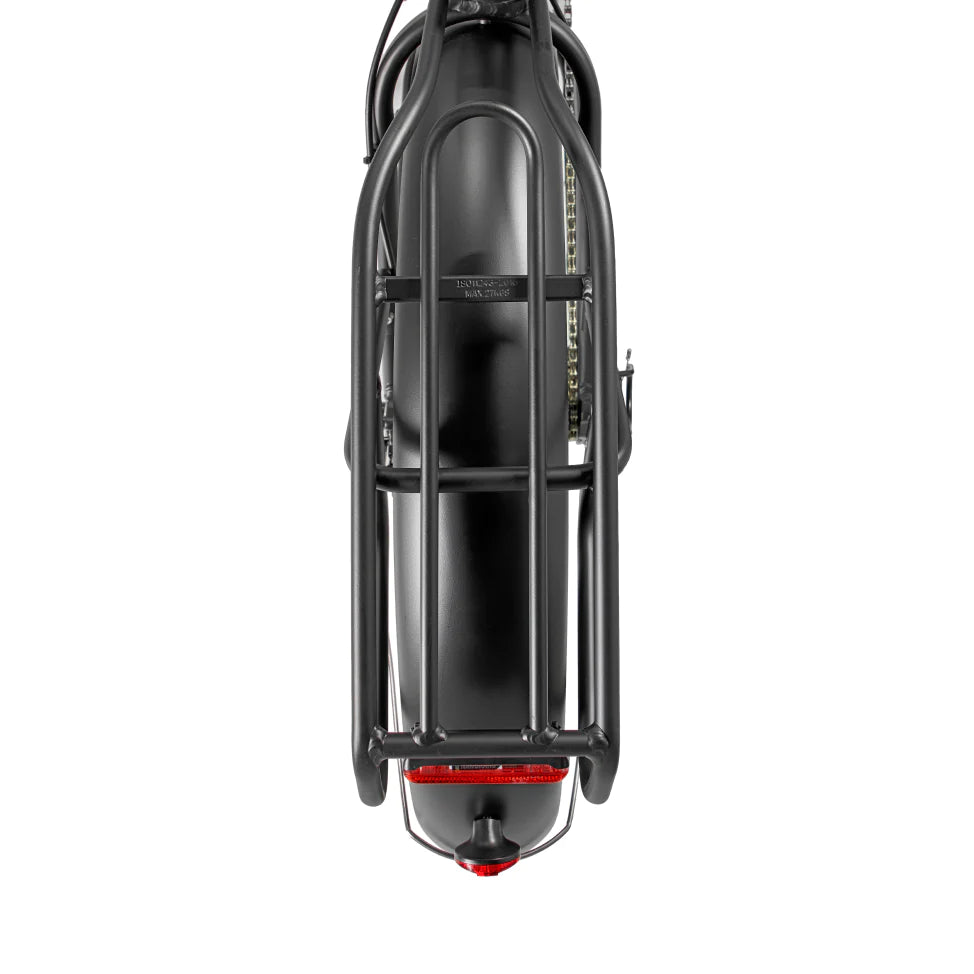

    Aluminum Rear Rack-Street Rides

    Aluminum Rear Rack

    The included aluminum rear rack is sturdy and strong, and includes straps to secure your load.

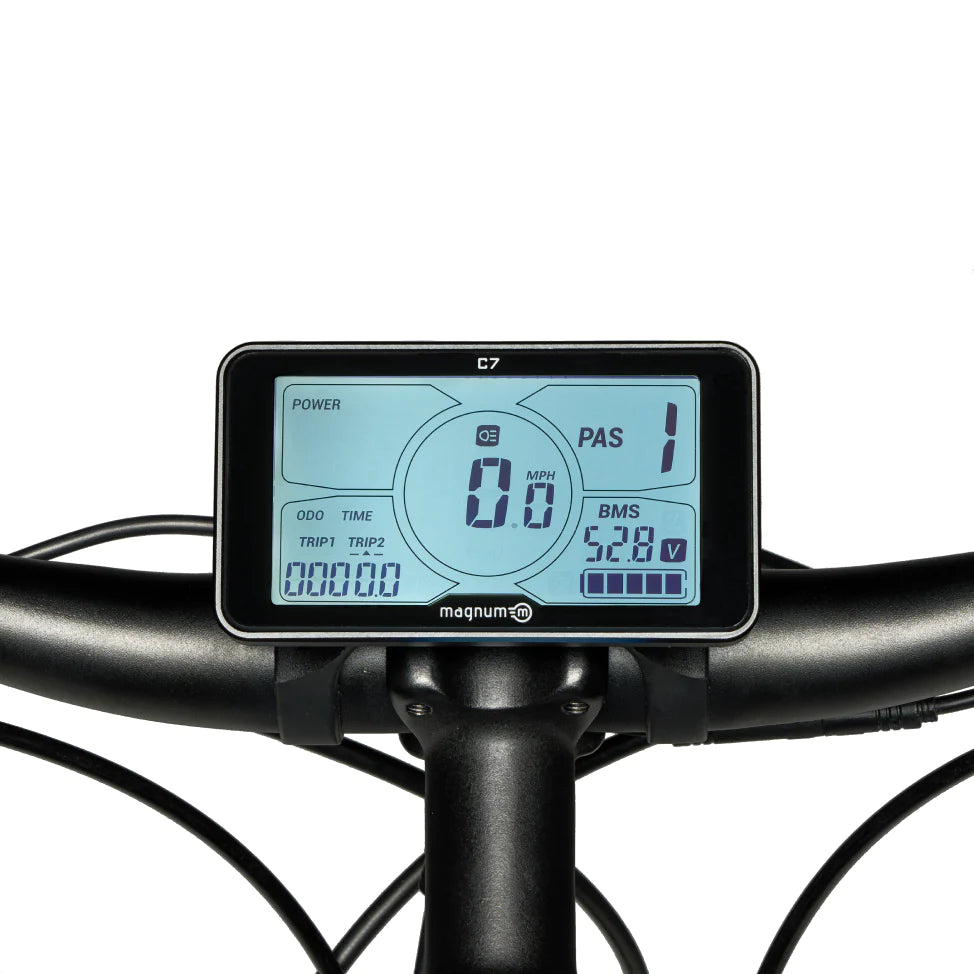

    Das-Kit C7 LCD Display-Street Rides

    Das-Kit C7 LCD Display

    Das-kit C7, Fixed, Backlit, Monochrome LCD display provides the info you need right at your fingertips.

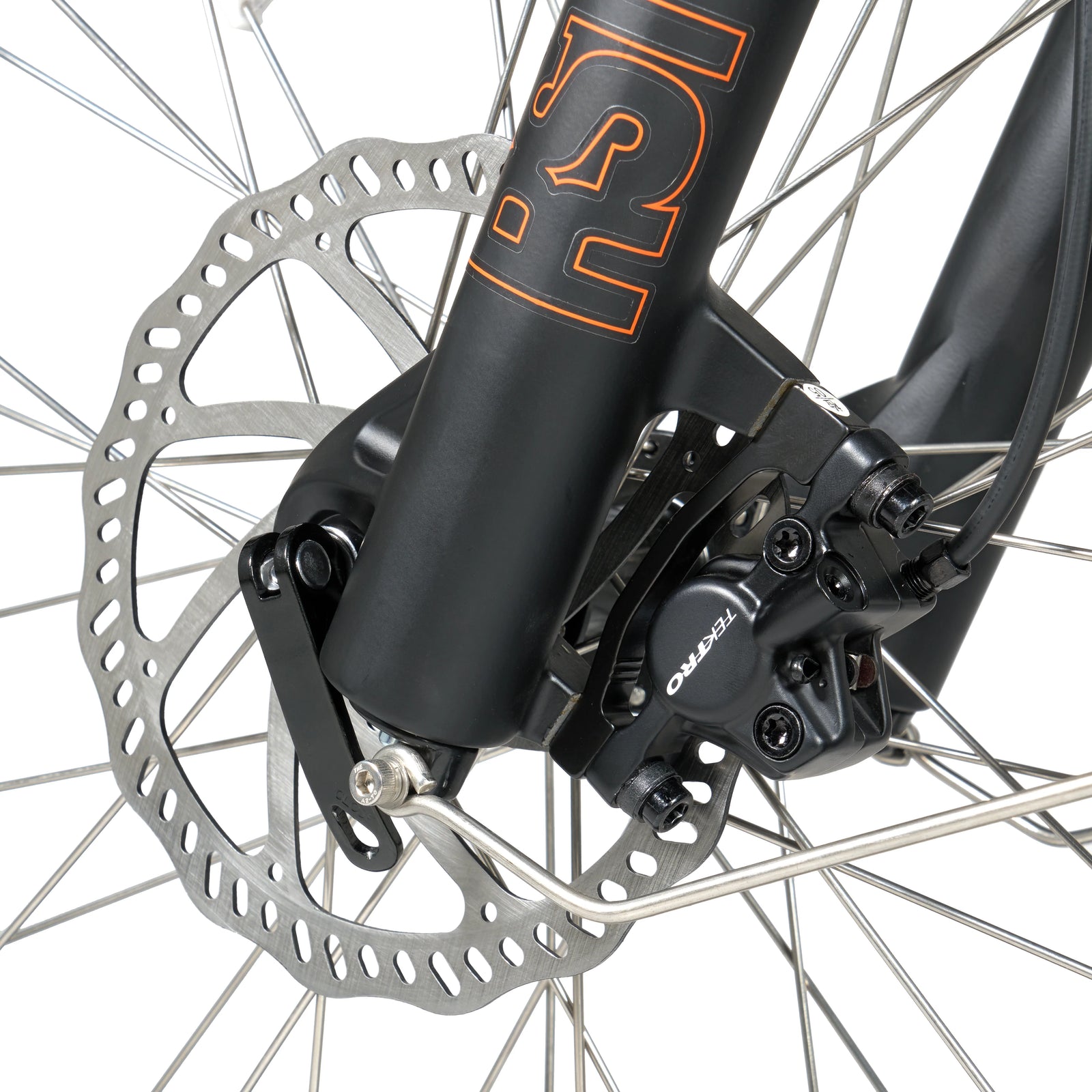

    Tektro Hydraulic Disc Brakes-Street Rides

    Tektro Hydraulic Disc Brakes

    Tektro Hydraulic Disc brakes have large surdy rotors and the power and grip to stop you quickly.

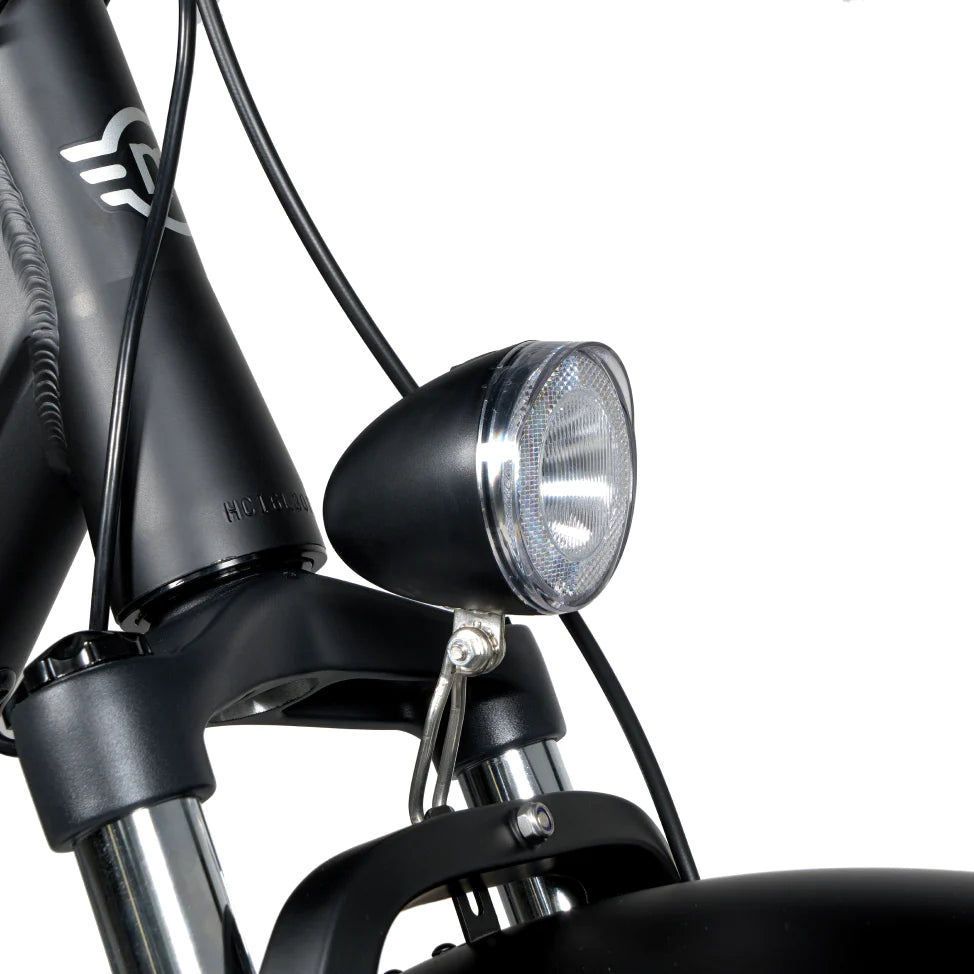

    Integrated Lights-Street Rides

    Integrated Lights

    Front and rear lights provide safety and visibility, and can be turned off during sunny daylight rides.
